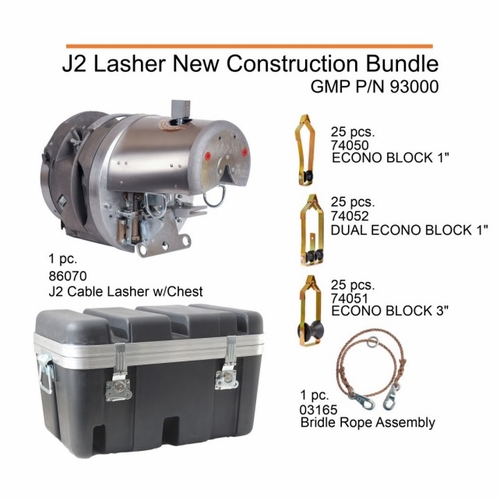

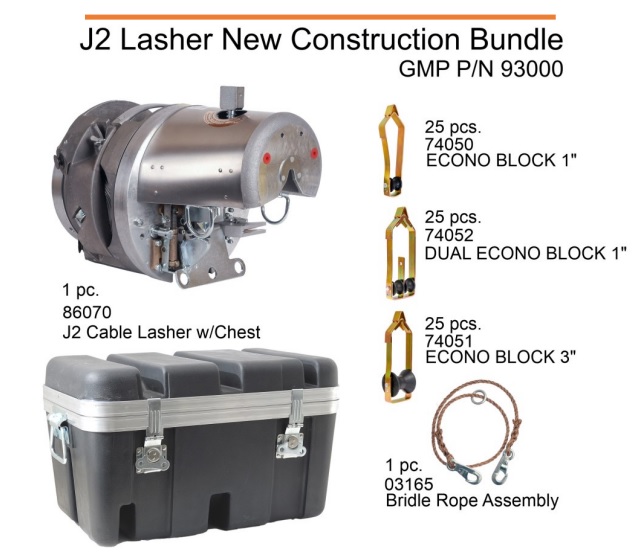

P/N 93000 J2 Lasher New Construction Bundle

Includes: Qty. P/N Description 1 86070 J2 Cable Lasher w/Chest 25 74050 Econo Block 1 Inch 25 74052 Dual Econo Block 1 inch 25 74051 Econo Block 3 inch 1 03165 Bridle Rope Assembly

The Model J2 Cable Lasher is used to lash a single aerial cable or numerous cables to a supporting strand or to an existing lashed cable with stainless steel lashing wire.

Will lash any single or multiple aerial cables up to 3 in. (76mm) diameter across on any suspension strand from 1/4 in. (6mm) to 7/16 in. (11mm). A factory modification will allow the lasher to accommodate 1/2 in. (12.7mm) strand if necessary.

Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable lifters, cable and strand rollers

Each of two recessed magazines will hold a 1200 ft. coil of .045 in. (365m of 1.1mm wire) lashing wire (or 450 ft. of .065 in.). The Lashing Wire is fully recessed and covered by a gate.

Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel

J2 Lashers make overlashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable

Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break

Constructed with heat-treated, plated steel, stainless steel, brass and aluminum components. Contains sealed and oiless bearings to minimize maintenance and assure durability.

Pre-drilled and tapped at the factory for mounting of the lasher guard or �halo�. For use when lashing in overgrown areas.

The J2 and every GMP lasher is fully serviceable to �good-as-new� specifications at our factory and at factory-trained service locations around the globe.

The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture-proof, tongue-in-groove design for maximum protection when not in use

ECONO CABLE BLOCKS Supports fiber optic cables during cable pullout. Designed to prevent cables from catching or snagging.

The frames are made from high quality steel

The easy clip-on design makes for fast work when time is money

The unique housing profile keeps the lashing machine (P/N�s 71422 and 86070) from riding over the unit

The glass-filled nylon rollers are forgiving of field abuse

The compliant 3 inch rubber roller reduces the chance of damage to your cable during pullout

All steel parts are zinc plated for corrosion resistanceRead More
