DCD DESIGN/CABLE SPINNING EQUIPMENT 61400-000 Cable Lasher Lineman (1050) Pull Type NEW
DCD DESIGN/CABLE SPINNING EQUIPMENT Design & Manufacturing Ltd. is going Overhead! Announcing the latest addition to their product line - the LINEMAN Lasher. See Announcement for details of acquisition.

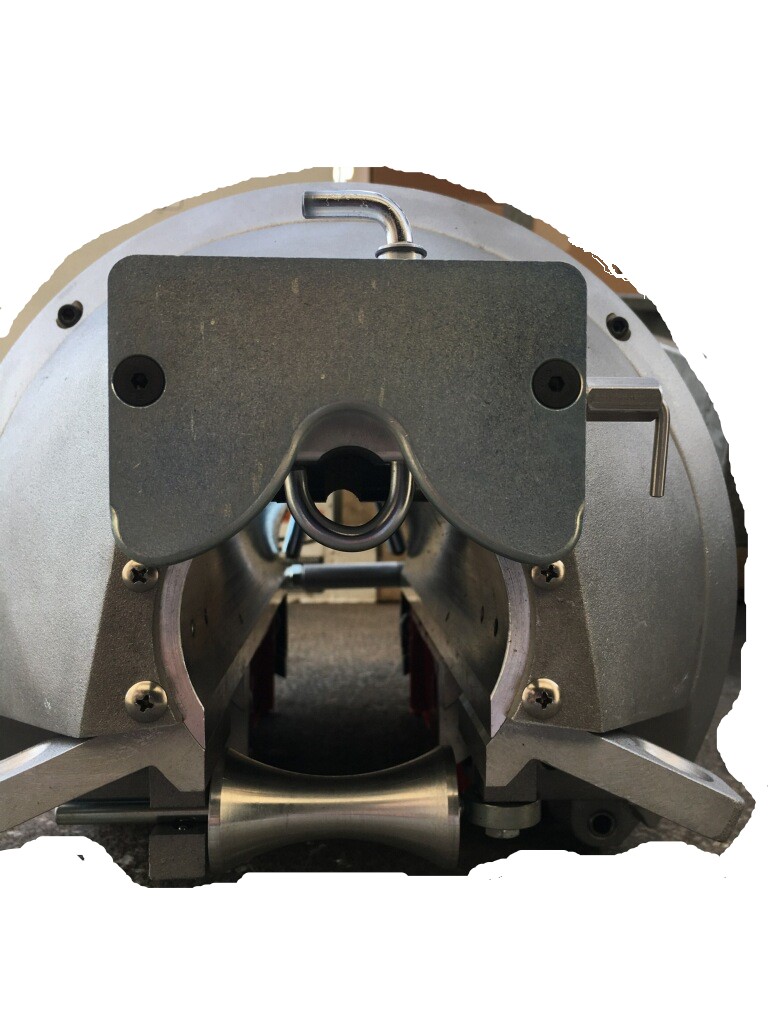

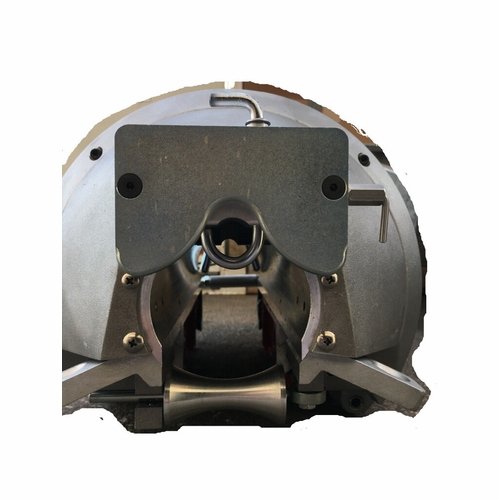

The Lineman™ Lasher is the pull type cable lasher for tough jobs, especially the ones that always seem to come up at night and in dusty, wet or icy conditions. Use it to lash single or multiple cables up to 3" outside diameter and for single and double overlashing. It is perfect for lashing CATV and fiber optic cable.
You won't get snagged in trees and tight places with the Lineman™ Lasher because of the smooth-faced, tapered cowl. The fast, easy transfer around poles for continuous lashing is important, especially if you are paid or are paying by the foot, the Lineman™ Lasher cuts transfer time by as much as one-third. The wire quick-release trigger mounts below the handle for easy, one-hand engagement and release.
Versatility means less downtime and smooth operation. The tough, precision drive system needs no adjustment and delivers even lashing action. A key feature is that the Lineman requires no strand traction to drive rotation – this means you can now lash in any weather. The strand brake keeps wire tight, and front-end ratchets keep the lasher from sliding backward when forward motion is halted.
The Lineman™ Lasher holds up to 1200 ft. per coil of 0.045" lashing wire without reloading, and works compatibly with up to 1/2" strands. A flat base ensures the lasher won't roll around in transit. An ergonomically engineered handle and controls add to total precision performance.
DCD DESIGN/CABLE SPINNING EQUIPMENT Part # 61400-000
Model Lineman (1050)
Max Strand 1/2"
Max Lash 3" dia
Wire Size .045"
Spool size 1200ft/coil
Overall Dims 19-1/2" x12" x 12"
Weight 38 lb.
Lashes single and multiple cables up to 3" O.D., Single and double lashes too, Lasher holds up to 1200 ft. per coil of .045" wire without reloading, Compatible with up to 1/2" strand or any size in between.
It offers quick and easy transfer: Transfers around poles quickly and easily to continue lashing - that's important when you're paid by the foot, Cuts transfer time by as much as one third, Handle-mounted drive system clutch release trigger for easy, one-hand engagement and release of wire
The LINEMAN Lasher lashes in any weather:
Doesn't require strand traction to drive the lasher, even in dusty, wet or icy conditions, Tough, precision drive system needs no adjustment, Strand brake maintains wire tension - lasher will not move backwards if forward motion is halted. The DCD DESIGN/CABLE SPINNING EQUIPMENT Lineman offers superior maneuverability and stability: Smooth-faced, tapered cowl minimizes snagging in trees and tight places,Ergonomically engineered handle and controls,
Flat base - The Lineman won't roll around in transit or at the job site, Weighs just 38 lbs. Unloaded.
DCD 1050 lasher part# 61400-000 Includes lasher, lanyard, manual, carrying case
8422.40 harmonized code
shipping dimensions 25" x20" x15"
shipping weight 61 lbs.
