DCD 00621-200 Duct Puller 200 mm Duct
Item # 30509132
Model # 00621-200
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

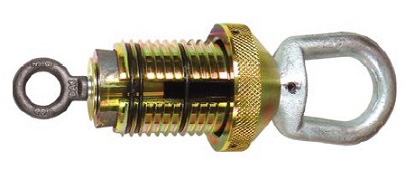

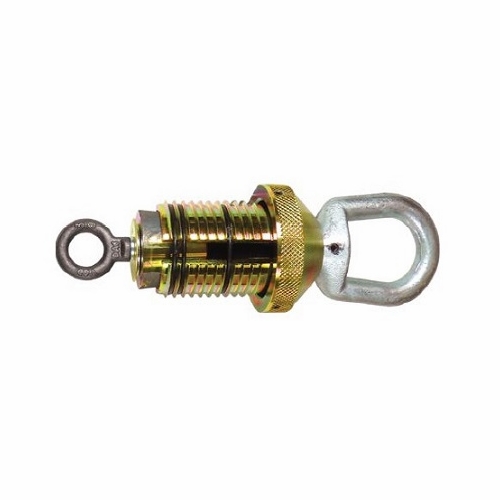

DCD 00621-200 Duct Puller 200 mm Duct
DCD 00621-200 Duct Puller 200 mm Duct
Part # 00621-200 Description Metric Duct Puller 200 mm
Nominal Duct Size 200 mm 3:1 Safe Working Load 164.5 kN Rear Eye Capacity (3:1 SWL) 153.3 kN Minimum Inside Duct Diameter 6.708 inch / 170.4 mm Maximum Inside Duct Diameter 7.874 inch / 200.0 mm Weight 40.8 kg Duct Sleeve Part No. N/A Duct Plugger Part No. 00631-200
Metric Version 00621 Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.
Expanding Duct Puller - 00620 Series These products are designed to grip polyethylene ducting using expanding jaws to grip the inside wall of the duct. This causes the pulling load to be spread around the circumference of the duct and allows a maximum load to be applied without damage to the ducting. Care should be taken at all times not to exceed the yield value of the ducting since this may cause permanent deformation to the duct as well as loss to the integrity of the polyethylene. On thin wall ducting, it is recommended that an outer duct sleeve be used to prevent the duct stretching during installation. A firmer and more stable grip will also be obtained when this is done. Use of a duct plugger will help to prevent mud and slurry from entering past the puller into the ducting. Duct wall thickness is normally designated by an SDR value. The lower the SDR value, the heavier the wall thickness. These products can be used on SDR 11 through SDR 17 ducting. Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
