DCD 00604-250 Innerduct Pulling Eye 2-1/2 inch Duct Lug Style
Available*
Item # 30509092
Model # 00604-250
$152.32
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 00604-250 Innerduct Pulling Eye 2-1/2 inch Duct Lug Style
DCD 00604-250 Innerduct Pulling Eye 2-1/2 inch Duct Lug Style

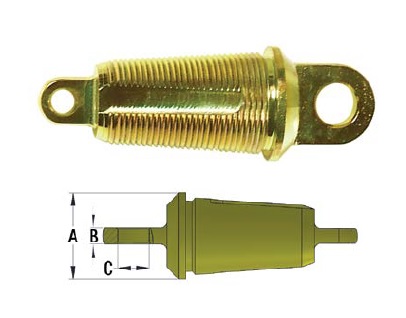

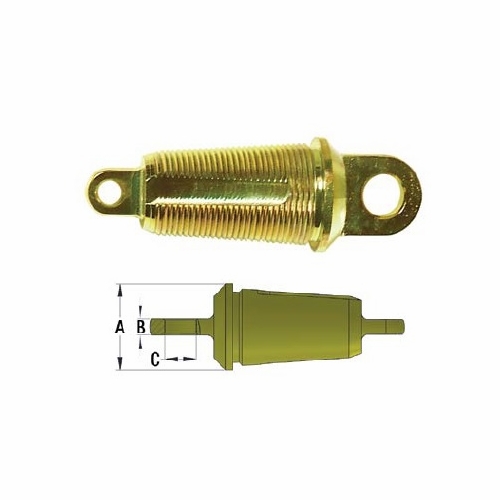

Part # 00604-250 Description Lug Style Innerduct Pulling Eye Nominal Duct Size 2-1/2 inch Minimum Duct Inside Diameter 2.41 inch Maximum Duct Inside Diameter 2.58 inch A 3 inch B 1/2 inch C 15/16 inch Weight 5.66 lb
Lug Style Pulling Eye The lug style is recommended when attaching directly to a Line Swivel (00505 series)or other clevis type connector.
Innerduct Pulling Eyes These products are designed to install polyethylene ducting using a screw-in tapered thread to grip the inside diameter of the duct. The pulling eyes are typically used to install innerduct inside a larger duct. However, the 00604 and 00605 series may also be used for directional drilling applications and because there are no moving parts, they are reliable and maintenance free. All of these pulling eyes are designed with cutting edges to actually cut a thread in the bore of the ducting as it is being screwed in, much the same way as using a tap to cut a thread in steel. This helps to ensure a reliable grip. Installation typically requires only seven or eight full threads of contact to give a grip stronger than the ducting itself. The pulling eyes are installed quickly and easily and require no special tooling. They are manufactured out of steel and plated for durability and corrosion resistance.
DCD 00604-250 Innerduct Pulling Eye 2-1/2 inch Duct Lug Style
Part # 00604-250 Description Lug Style Innerduct Pulling Eye Nominal Duct Size 2-1/2 inch Minimum Duct Inside Diameter 2.41 inch Maximum Duct Inside Diameter 2.58 inch A 3 inch B 1/2 inch C 15/16 inch Weight 5.66 lb
Lug Style Pulling Eye The lug style is recommended when attaching directly to a Line Swivel (00505 series)or other clevis type connector.
Innerduct Pulling Eyes These products are designed to install polyethylene ducting using a screw-in tapered thread to grip the inside diameter of the duct. The pulling eyes are typically used to install innerduct inside a larger duct. However, the 00604 and 00605 series may also be used for directional drilling applications and because there are no moving parts, they are reliable and maintenance free. All of these pulling eyes are designed with cutting edges to actually cut a thread in the bore of the ducting as it is being screwed in, much the same way as using a tap to cut a thread in steel. This helps to ensure a reliable grip. Installation typically requires only seven or eight full threads of contact to give a grip stronger than the ducting itself. The pulling eyes are installed quickly and easily and require no special tooling. They are manufactured out of steel and plated for durability and corrosion resistance.
