DCD 00621-040 Duct Puller 40mm Duct
Available*
Item # 30509128
Model # 00621-040
$336.11
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

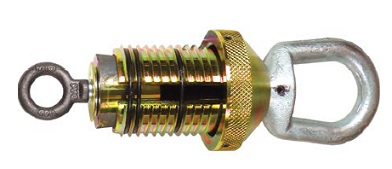

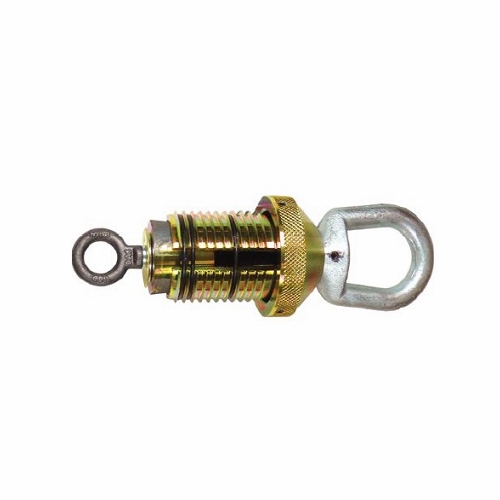

DCD 00621-040 Duct Puller 40mm Duct
DCD 00621-040 Duct Puller 40mm Duct
Part # 00621-040 Description Metric Duct Puller 40 mm These Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.
Nominal Duct Size 40 mm 3:1 Safe Working Load 16.6 kN Rear Eye Capacity (3:1 SWL) 4.8 kN Minimum Inside Duct Diameter 1.260 inch / 32.0 mm Maximum Inside Duct Diameter 1.496 inch / 38.0 mm Weight 0.73 kg Duct Sleeve Part No. 00626-040 Duct Plugger Part No. 00631-040
Metric Version 00621 Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.
Expanding Duct Puller - 00620 Series These products are designed to grip polyethylene ducting using expanding jaws to grip the inside wall of the duct. This causes the pulling load to be spread around the circumference of the duct and allows a maximum load to be applied without damage to the ducting. Care should be taken at all times not to exceed the yield value of the ducting since this may cause permanent deformation to the duct as well as loss to the integrity of the polyethylene. On thin wall ducting, it is recommended that an outer duct sleeve be used to prevent the duct stretching during installation. A firmer and more stable grip will also be obtained when this is done. Use of a duct plugger will help to prevent mud and slurry from entering past the puller into the ducting. Duct wall thickness is normally designated by an SDR value. The lower the SDR value, the heavier the wall thickness. These products can be used on SDR 11 through SDR 17 ducting. Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
DCD 00621-040 Duct Puller 40mm Duct
Part # 00621-040 Description Metric Duct Puller 40 mm These Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.
Nominal Duct Size 40 mm 3:1 Safe Working Load 16.6 kN Rear Eye Capacity (3:1 SWL) 4.8 kN Minimum Inside Duct Diameter 1.260 inch / 32.0 mm Maximum Inside Duct Diameter 1.496 inch / 38.0 mm Weight 0.73 kg Duct Sleeve Part No. 00626-040 Duct Plugger Part No. 00631-040
Metric Version 00621 Duct Pullers are the same as the 00620 series, but are designed with jaws that allow sizing to metric duct sizes.
Expanding Duct Puller - 00620 Series These products are designed to grip polyethylene ducting using expanding jaws to grip the inside wall of the duct. This causes the pulling load to be spread around the circumference of the duct and allows a maximum load to be applied without damage to the ducting. Care should be taken at all times not to exceed the yield value of the ducting since this may cause permanent deformation to the duct as well as loss to the integrity of the polyethylene. On thin wall ducting, it is recommended that an outer duct sleeve be used to prevent the duct stretching during installation. A firmer and more stable grip will also be obtained when this is done. Use of a duct plugger will help to prevent mud and slurry from entering past the puller into the ducting. Duct wall thickness is normally designated by an SDR value. The lower the SDR value, the heavier the wall thickness. These products can be used on SDR 11 through SDR 17 ducting. Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
