Home / Tools / Line Construction- Placing / Eyes- Cable Pulling / DCD 00616-400 Duct Puller 4 Inch Duct

DCD 00616-400 Duct Puller 4 Inch Duct

Name: DCD 00616-400 Duct Puller 4 Inch Duct
SKU: 30509104
Price: 523.02 USD
Availability: InStock

Available*

Item # 30509104

Model # 00616-400

$523.02

financing available. Learn More

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

Product Description
You Might Also like
Recently Viewed

Generic

Class

Group

Type

Manufacturer

LOT

Pull Eyes

Tools

Line Construction- Placing

Eyes- Cable Pulling

DCD Design And Manufacturing Ltd

Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

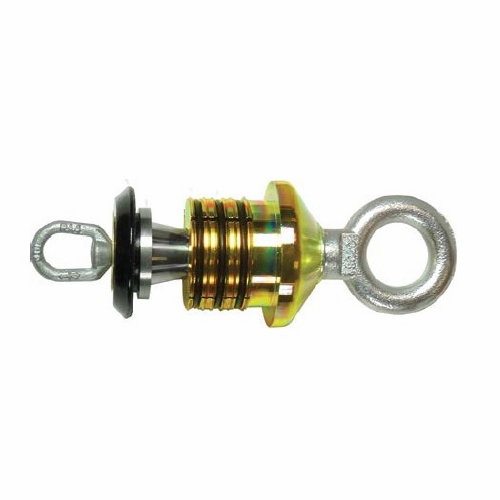

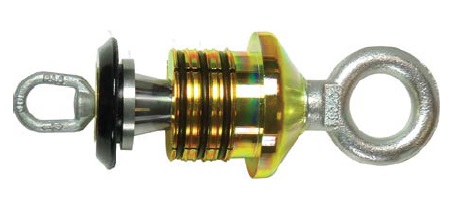

Dcd 00616-400 Duct Puller 4 Inch Duct

Dcd 00616-400 Duct Puller 4 Inch Duct

Part # 00616-400 Description Expanding Duct Puller Nominal Duct Size 4 Inch 3:1 Safe Working Load 12,000 Lb Rear Eye Capacity (3:1 Swl) 3,750 Lb Minimum Inside Duct Diameter 3.313 Inch / 84.1 Mm Maximum Inside Duct Diameter 4.063 Inch / 103.2 Mm Weight 14.6 Lb Duct Sleeve Part No. 00625-400 Note: Safe Working Load Is Based On The Duct Yield Strength To Protect From Creep Failure.

Expanding Duct Puller - 00616 Series The 00616/00617 Series Pullers Were Designed Based On The Older 00619 Series Pullers. After A Customer Request For A Easier To Handle Puller We Created A Puller With A Steel Face Plate Instead Of Polyurethane. This Design Change Has Been Made To Satisfy Customer Request. As With The 00619 Series, These Pullers Are Designed With A Larger Expansion Range In Each Unit As Compared To The 00620 Series. The Puller Comes Standard With A Duct Plugger Installed And Complete With A Rear Pulling Eye. Standard Duct Sleeves (00625 Series) Can Also Be Used With This Product.Read More
