DCD 00616-300 Duct Puller 3 Inch Duct

Dcd 00616-300 Duct Puller 3 Inch Duct

Dcd 00616-300 Duct Puller 3 Inch Duct

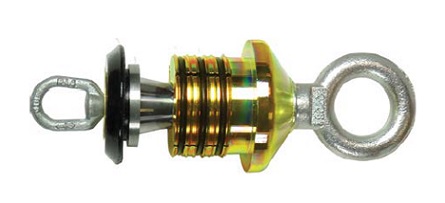

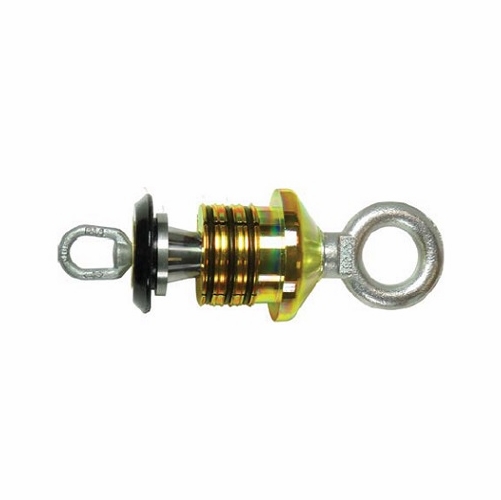

Part # 00616-300 Description Expanding Duct Puller Nominal Duct Size 3 Inch 3:1 Safe Working Load 8,600 Lb Rear Eye Capacity (3:1 Swl) 1,300 Lb Minimum Inside Duct Diameter 2.688 Inch / 68.3 Mm Maximum Inside Duct Diameter 3.125 Inch / 79.4 Mm Weight 5.7 Lb Duct Sleeve Part No. 00625-300 Note: Safe Working Load Is Based On The Duct Yield Strength To Protect From Creep Failure.

Expanding Duct Puller - 00616 Series The 00616/00617 Series Pullers Were Designed Based On The Older 00619 Series Pullers. After A Customer Request For A Easier To Handle Puller We Created A Puller With A Steel Face Plate Instead Of Polyurethane. This Design Change Has Been Made To Satisfy Customer Request. As With The 00619 Series, These Pullers Are Designed With A Larger Expansion Range In Each Unit As Compared To The 00620 Series. The Puller Comes Standard With A Duct Plugger Installed And Complete With A Rear Pulling Eye. Standard Duct Sleeves (00625 Series) Can Also Be Used With This Product.Read More
