GMP 70299 HARNESS PULL 3-WAY 1/4 inch STAG
Available*
Item # 29899050
Model # 70299
$204.36
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Harness
Tools
Line Construction- Placing
Eyes- Cable Pulling
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

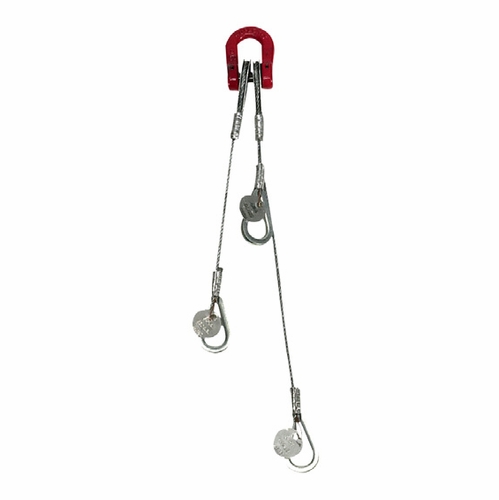

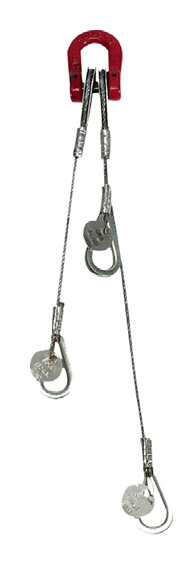

GENERAL MACHINE PRODUCTS 70299 HARNESS PULL 3-WAY 1/4" STAG NEW This convenient product will allow multiple pulls at one time by attaching 2 or 3 cables or ducts to the Puller.
The slings are manufactured from aircraft quality wire rope.
The various “legs” are staggered in length so the individual connections are not interfering with each other. The lead coupler can be easily dismantled to change out a leg or to add another leg.
Each leg is marked with load capacity and they are pull tested to 3 times that rating. The safety factor of 3:1 is based on equal pull on all cables, (horizontal pull only).
Other sling configurations are available upon request.
Cable Pulling Harnesses P/N Maximum Harness Width Safe Working Load (3:1) Wire Rope Diameter Leg Lengths
--------------------------------------------------------------------------------
70298 2-1/4 in. (57 mm) 2000 lbs. (9 kN) 1/8 in. (3 mm) 7", 10", 15" 70299 3-1/8 in. (79 mm) 5800 lbs. (26 kN) 1/4 in. (6 mm) 10", 18", 26" 70300 3-1/2 in. (89 mm) 8400 lbs. (37 kN) 3/8 in. (10 mm) 16", 25", 36"
The slings are manufactured from aircraft quality wire rope.
The various “legs” are staggered in length so the individual connections are not interfering with each other. The lead coupler can be easily dismantled to change out a leg or to add another leg.
Each leg is marked with load capacity and they are pull tested to 3 times that rating. The safety factor of 3:1 is based on equal pull on all cables, (horizontal pull only).
Other sling configurations are available upon request.
Cable Pulling Harnesses P/N Maximum Harness Width Safe Working Load (3:1) Wire Rope Diameter Leg Lengths
--------------------------------------------------------------------------------
70298 2-1/4 in. (57 mm) 2000 lbs. (9 kN) 1/8 in. (3 mm) 7", 10", 15" 70299 3-1/8 in. (79 mm) 5800 lbs. (26 kN) 1/4 in. (6 mm) 10", 18", 26" 70300 3-1/2 in. (89 mm) 8400 lbs. (37 kN) 3/8 in. (10 mm) 16", 25", 36"
