Product Description

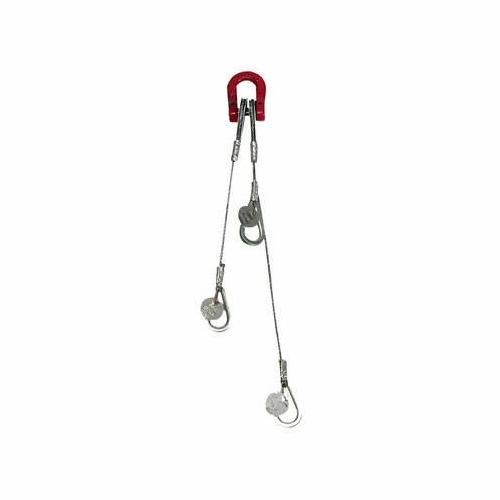

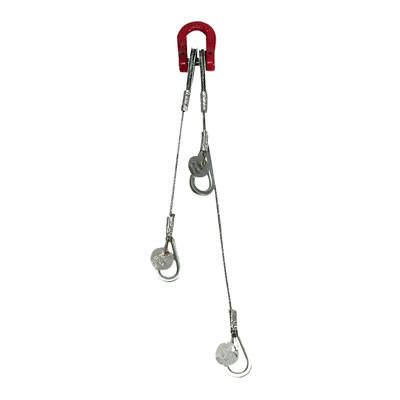

General Machine Products 70298 Harness Pull 3-Way 1/8" Stag New This Convenient Product Will Allow Multiple Pulls At One Time By Attaching 2 Or 3 Cables Or Ducts To The Puller.

The Slings Are Manufactured From Aircraft Quality Wire Rope.

The Various “Legs” Are Staggered In Length So The Individual Connections Are Not Interfering With Each Other. The Lead Coupler Can Be Easily Dismantled To Change Out A Leg Or To Add Another Leg.

Each Leg Is Marked With Load Capacity And They Are Pull Tested To 3 Times That Rating. The Safety Factor Of 3:1 Is Based On Equal Pull On All Cables, (Horizontal Pull Only).

Other Sling Configurations Are Available Upon Request.

Cable Pulling Harnesses P/N Maximum Harness Width Safe Working Load (3:1) Wire Rope Diameter Leg Lengths

--------------------------------------------------------------------------------

70298 2-1/4 In. (57 Mm) 2000 Lbs. (9 Kn) 1/8 In. (3 Mm) 7", 10", 15" 70299 3-1/8 In. (79 Mm) 5800 Lbs. (26 Kn) 1/4 In. (6 Mm) 10", 18", 26" 70300 3-1/2 In. (89 Mm) 8400 Lbs. (37 Kn) 3/8 In. (10 Mm) 16", 25", 36"
