AA LOGIC ATV-25 AND ATV-R/T SET (LIKE )
Available*
Item # 25412110
Model # ATV-25 SET
$12,500.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Davar
Test Equipment
Subscriber Loop Tester
Analyzers Spectrum
AA Logic
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AA LOGIC ATV-25 AND ATV-R/T SET (LIKE NEW)
AA LOGIC ATV-25 AND ATV-R/T SET (LIKE NEW) test results are stored in flash memory

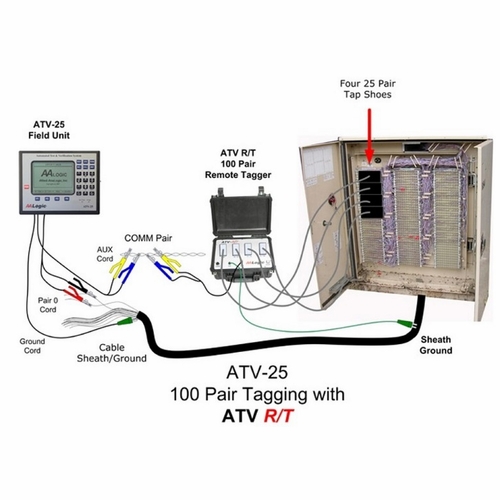

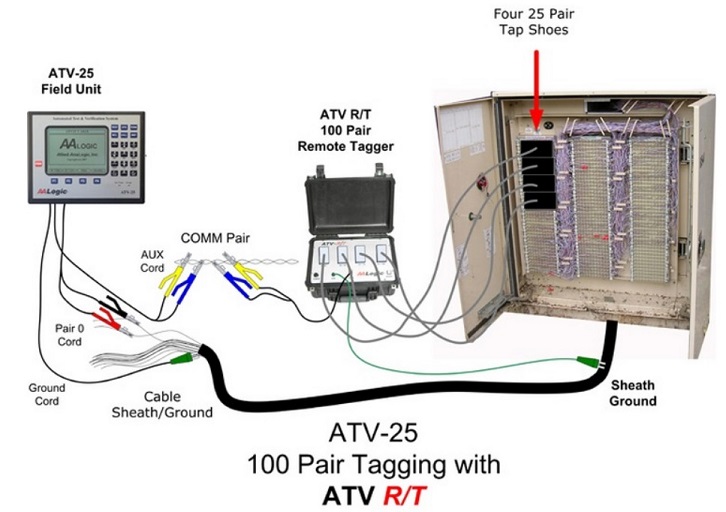

The ATV-25 and ATV R/T enable the user to automatically tag (identify) up to 100 cable pairs at a time.
The ATV-25 is the field unit and controls all the features of the ATV R/T. The ATV R/T allows testing of any or all of the four 25 pair modules saving test time by targeting specific pairs.
Tagging includes measurement of AC and DC potentials at the near and far ends of the pair under test and matching values. This helps reduce false positives due to tone coupling. The ATV-25 Field Unit can also request the ATV R/T to send tone, including TriPlex, on any of the 100 connected pairs. The tone signal has adequate amplitude to be easily located at the field site with a standard probe.
The ATV R/T can be placed in the central office, cross connect, or any location where pair identity is known. An optional DC power pack is available for use when AC power is not available.
Automatic Pair Identification/Tagging The ATV-25 also provides pair tagging capabilities either in end-to-end or half-tap cable configurations. Pair tagging is used to identify cable pairs by comparing electrical measurements and a identification tone for one of up to 100 cable pairs. This feature is faster and more accurate than manual tone probe procedures.
AA LOGIC ATV-25 AND ATV-R/T SET (LIKE NEW) test results are stored in flash memory
The ATV-25 and ATV R/T enable the user to automatically tag (identify) up to 100 cable pairs at a time.
The ATV-25 is the field unit and controls all the features of the ATV R/T. The ATV R/T allows testing of any or all of the four 25 pair modules saving test time by targeting specific pairs.
Tagging includes measurement of AC and DC potentials at the near and far ends of the pair under test and matching values. This helps reduce false positives due to tone coupling. The ATV-25 Field Unit can also request the ATV R/T to send tone, including TriPlex, on any of the 100 connected pairs. The tone signal has adequate amplitude to be easily located at the field site with a standard probe.
The ATV R/T can be placed in the central office, cross connect, or any location where pair identity is known. An optional DC power pack is available for use when AC power is not available.
Automatic Pair Identification/Tagging The ATV-25 also provides pair tagging capabilities either in end-to-end or half-tap cable configurations. Pair tagging is used to identify cable pairs by comparing electrical measurements and a identification tone for one of up to 100 cable pairs. This feature is faster and more accurate than manual tone probe procedures.
