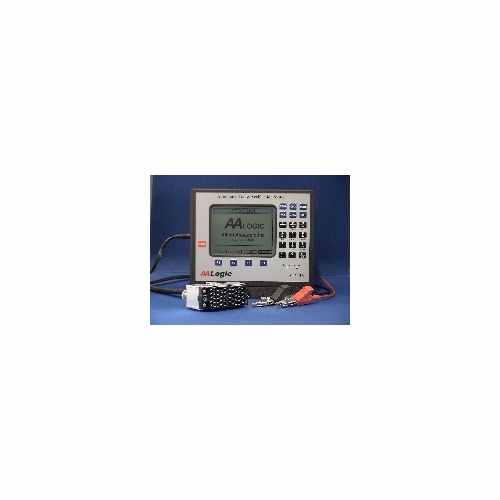

AA LOGIC ATV-25 CONSTRUCTION TEST SYSTEM 25 PAIR RAPID TESTING UNIT (77 ANALYZER)
Available*
Item # 25412100
Model # ATV-25
$10,316.13
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Davar
Test Equipment
Subscriber Loop Tester
Analyzers Spectrum
AA Logic
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AA LOGIC ATV-25 CONSTRUCTION TEST SYSTEM 25 PAIR RAPID TESTING UNIT (77 ANALYZER) NEW Automated Test and Verification System
The ATV-25 is an advanced testing system designed for the construction and maintenance of copper outside plant pairs.
The system provides DC testing, AC testing, special circuit identification, automatic number retrieval, load coil detection, reference pair comparison, automatic pair identification, and more.
Optimized Testing
The ATV-25 automated testing includes standard tests for working and vacant pairs. Users can further optimize testing by configuring tests for only those measurements needed to decrease test time and target specific performance criteria.
Pass/Fail criteria can be adjusted to meet the specific requirements of the plant. Reference pair length can be measured from a cable pair or entered from the keyboard.
The Rapid Scan test compares pairs to the reference and flags pairs that exceed the specified length tolerance. This identifies bridge-tap, open splices, splits and crosses.
ATV-25 PC Utility Software
The ATV-25 PC Utility allows users to upload test data to a PC and download firmware updates or other configuration and setup information. The included PC Utility Software makes it convenient to load multiple ATV- 25 units with standard configuration information to ensure consistent test results. Electronic test data can be exported as industry standard XML files. This capability allows the data to be processed by databases, spreadsheets, and other software that support this format. Additional Features Description Assigned Number Retrieval ANAC or CID Working Circuit Identification POTS, T1, ISDN, ADSL, ADSL2, ADSL2+, HDSL Modular Pair Tagging 25 pair at a time, 50 pin, Male Cinch-Jones connector and up to 100 pairs using an ATV R/T or multiple ATV-25 test sets Bulk Pair Testing 25 pair module, 50 pin, Male Cinch-Jones connector Reference Pair Comparison Measured or manual entry of reference open length, internal storage for four reference pairs. Special Circuit Protection Prevents disturbing sensitive data circuits ID Tone 577 Hz and 1004Hz @ 10Vpp Talk/Wait Circuit 12VDC @ 40mA max. CO List Rapid entry of CO information Location List Rapid entry of Location information User List Rapid entry of user information
Specifications Size: 7.85 x 6.2 x 3.1 inches Weight: 5 lbs Operating Temp: 0 to 140° F Power Supply: 12VDC @ 1A, 5.5 mm jack Internal Battery: 7.2 VDC Display: 320 x 240 LCD, backlit PC Interface: USB 2.0 Operation Time Internal Battery: 8 to 10 hours Charge Time: 4 to 6 hours Function Range DC Voltage ±275 V AC Voltage 200 Vrms Resistance 10 MO Opens 110 kf Capacitive Balance 90% to 100% Longitudinal Balance 15 dB to 120 dB
Load Coil Detection up to 4 coils Loss (mW reference), 3 kHz flat -3 dB to –60 dB Metallic Noise (quiet termination), 3 kHz flat 10 dBrn to 80 dBrn Loop Current 0 to 80 mA
The ATV-25 is an advanced testing system designed for the construction and maintenance of copper outside plant pairs.
The system provides DC testing, AC testing, special circuit identification, automatic number retrieval, load coil detection, reference pair comparison, automatic pair identification, and more.
Optimized Testing
The ATV-25 automated testing includes standard tests for working and vacant pairs. Users can further optimize testing by configuring tests for only those measurements needed to decrease test time and target specific performance criteria.
Pass/Fail criteria can be adjusted to meet the specific requirements of the plant. Reference pair length can be measured from a cable pair or entered from the keyboard.
The Rapid Scan test compares pairs to the reference and flags pairs that exceed the specified length tolerance. This identifies bridge-tap, open splices, splits and crosses.
ATV-25 PC Utility Software
The ATV-25 PC Utility allows users to upload test data to a PC and download firmware updates or other configuration and setup information. The included PC Utility Software makes it convenient to load multiple ATV- 25 units with standard configuration information to ensure consistent test results. Electronic test data can be exported as industry standard XML files. This capability allows the data to be processed by databases, spreadsheets, and other software that support this format. Additional Features Description Assigned Number Retrieval ANAC or CID Working Circuit Identification POTS, T1, ISDN, ADSL, ADSL2, ADSL2+, HDSL Modular Pair Tagging 25 pair at a time, 50 pin, Male Cinch-Jones connector and up to 100 pairs using an ATV R/T or multiple ATV-25 test sets Bulk Pair Testing 25 pair module, 50 pin, Male Cinch-Jones connector Reference Pair Comparison Measured or manual entry of reference open length, internal storage for four reference pairs. Special Circuit Protection Prevents disturbing sensitive data circuits ID Tone 577 Hz and 1004Hz @ 10Vpp Talk/Wait Circuit 12VDC @ 40mA max. CO List Rapid entry of CO information Location List Rapid entry of Location information User List Rapid entry of user information
Specifications Size: 7.85 x 6.2 x 3.1 inches Weight: 5 lbs Operating Temp: 0 to 140° F Power Supply: 12VDC @ 1A, 5.5 mm jack Internal Battery: 7.2 VDC Display: 320 x 240 LCD, backlit PC Interface: USB 2.0 Operation Time Internal Battery: 8 to 10 hours Charge Time: 4 to 6 hours Function Range DC Voltage ±275 V AC Voltage 200 Vrms Resistance 10 MO Opens 110 kf Capacitive Balance 90% to 100% Longitudinal Balance 15 dB to 120 dB
Load Coil Detection up to 4 coils Loss (mW reference), 3 kHz flat -3 dB to –60 dB Metallic Noise (quiet termination), 3 kHz flat 10 dBrn to 80 dBrn Loop Current 0 to 80 mA
