3M DYNATEL 2250M-ID/UU3W-RT CABLE LOCATOR 80611141443
Available*
Item # 22350477
Model # 2250M-ID/UU3W
$4,604.85
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Locator
Test Equipment
Locators Cable Path-Depth
Locators- Cable Path
3M
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
3M DYNATEL 2250M-ID/UU3W-RT CABLE LOCATOR 80611141443 NEW
3M DYNATEL 2250M-ID/UU3W-RT CABLE LOCATOR 80611141443 NEW

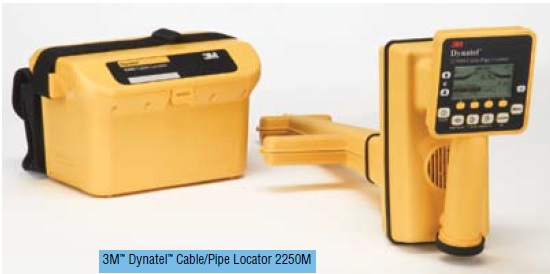

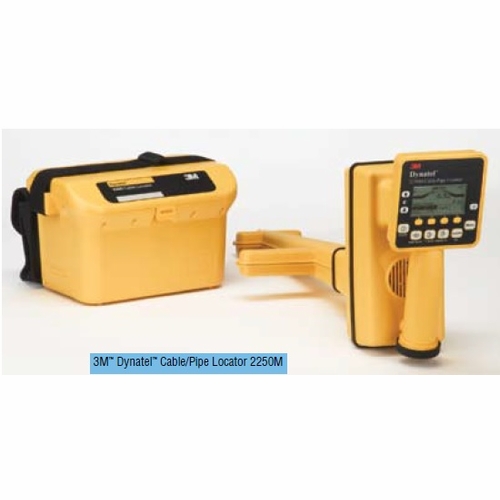

2250M-iD/UU3W-RT Cable/pipe locator US Utility 3-watt with EMS-iD capabilities
The system consists of two basic components: • Transmitter with built-in ohmmeter, which also measures the presence of foreign voltage and tests the continuity of the circuit. • Rugged, one-piece hand-held receiver with large high-resolution LCD display. Bar graph signal strength and direction indicates received signal and proximity to the cable. M-iD versions locate and read/write to all EMS-RFiD markers.
The 2250M/2250M-iD locators use four active trace frequencies (individually or simultaneously) to compensate for varying field conditions. The receiver incorporates passive power, CATV, and auxiliary frequencies that do not require the use of the transmitter. The receiver also offers four user-definable auxiliary frequencies. With the easy-to-use configuration tool, users can enable or disable any of 22 frequencies. Both the receiver and the transmitter feature a self-test routine that is executed each time the unit is turned on.
Transmitter (6.75 x 11.25 x 7.75, 5.2 lb. Receiver 10.25 x 10.5 x 30, 4.85 lb. Shipping 17.6 lb.
3M DYNATEL 2250M-ID/UU3W-RT CABLE LOCATOR 80611141443 NEW
2250M-iD/UU3W-RT Cable/pipe locator US Utility 3-watt with EMS-iD capabilities
The system consists of two basic components: • Transmitter with built-in ohmmeter, which also measures the presence of foreign voltage and tests the continuity of the circuit. • Rugged, one-piece hand-held receiver with large high-resolution LCD display. Bar graph signal strength and direction indicates received signal and proximity to the cable. M-iD versions locate and read/write to all EMS-RFiD markers.
The 2250M/2250M-iD locators use four active trace frequencies (individually or simultaneously) to compensate for varying field conditions. The receiver incorporates passive power, CATV, and auxiliary frequencies that do not require the use of the transmitter. The receiver also offers four user-definable auxiliary frequencies. With the easy-to-use configuration tool, users can enable or disable any of 22 frequencies. Both the receiver and the transmitter feature a self-test routine that is executed each time the unit is turned on.
Transmitter (6.75 x 11.25 x 7.75, 5.2 lb. Receiver 10.25 x 10.5 x 30, 4.85 lb. Shipping 17.6 lb.
