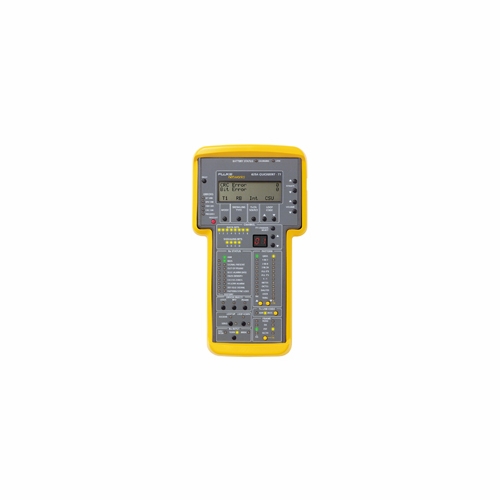

FLUKE 635A QUICKBERT T1 TESTER
Available*
Item # 22194700
Model # 635A
$4,111.94
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
T1
Test Equipment
Transmission Testing
T-1 Wideband
Fluke Networks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FLUKE 635A QUICKBERT T1 TESTER NEW Handheld T1 Test Set. Quickbert-T1. Includes A Carrying Case, Toolpak (Accessories To Hang The Test Set), A/C Power Adapter, Two Bantam-To-Bantam Cables, And User Manual
At a Glance
Full featured, handheld T1 test set at an affordable price Instantaneous detection and display of framing, line coding, errors, alarms, level, frequency and more Transmits and receives common Bit Error Rate Test (BERT) patterns and includes all common loop codes, including HDSL
Product Capabilities
In a single 4 lb (1.8 kg) package, the 635 includes all the basic T1 testing capabilities you would expect in a larger and more expensive tester. It performs bit-error tests, detects framing type, line coding and bit pattern, and displays signal level, frequency, clock slips, errors and alarms. The 635 transmits the most commonly used loop codes, including HDSL. Full, unframed and fractional (56k and 64k) T1 are supported, along with display of signaling and data bits and capture of DTMF digits. Plus, individual voice channels may be monitored on the built-in speaker or over a headset.
Eleven standard BERT patterns are available, including a 64-bit user-defined pattern. The 635 also includes a "through" mode where the incoming pattern is retransmitted. Errors - including bipolar violations, logic and frame bit - can be injected to confirm proper handling by the network. Two receivers permit detection of any clock slips. Multiple receiver input types allow terminated, bridged or monitor (DSX) connections. Either recovered or internal clock references can be selected. AMI or B8ZS line coding can be transmitted and received, and SF, ESF, SLC96 and unframed framing are supported.
The 635 is compact, rugged and easy to use. Just plug it in and you can immediately see essential information without scrolling through layers of menus. The 635 automatically detects framing and line coding type and instantly displays any errors or alarms. A history indicator helps track intermittent problems.
At a Glance
Full featured, handheld T1 test set at an affordable price Instantaneous detection and display of framing, line coding, errors, alarms, level, frequency and more Transmits and receives common Bit Error Rate Test (BERT) patterns and includes all common loop codes, including HDSL
Product Capabilities
In a single 4 lb (1.8 kg) package, the 635 includes all the basic T1 testing capabilities you would expect in a larger and more expensive tester. It performs bit-error tests, detects framing type, line coding and bit pattern, and displays signal level, frequency, clock slips, errors and alarms. The 635 transmits the most commonly used loop codes, including HDSL. Full, unframed and fractional (56k and 64k) T1 are supported, along with display of signaling and data bits and capture of DTMF digits. Plus, individual voice channels may be monitored on the built-in speaker or over a headset.
Eleven standard BERT patterns are available, including a 64-bit user-defined pattern. The 635 also includes a "through" mode where the incoming pattern is retransmitted. Errors - including bipolar violations, logic and frame bit - can be injected to confirm proper handling by the network. Two receivers permit detection of any clock slips. Multiple receiver input types allow terminated, bridged or monitor (DSX) connections. Either recovered or internal clock references can be selected. AMI or B8ZS line coding can be transmitted and received, and SF, ESF, SLC96 and unframed framing are supported.
The 635 is compact, rugged and easy to use. Just plug it in and you can immediately see essential information without scrolling through layers of menus. The 635 automatically detects framing and line coding type and instantly displays any errors or alarms. A history indicator helps track intermittent problems.
