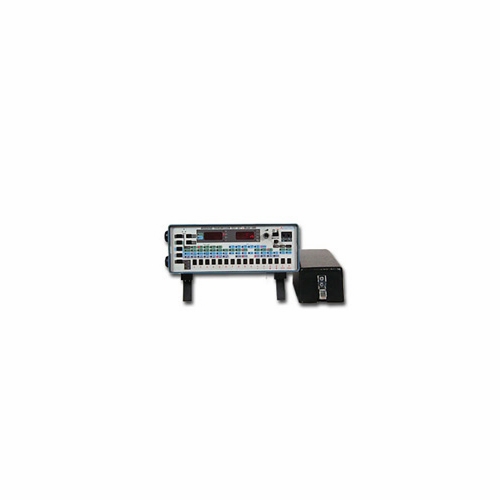

AMERITEC AM5 TRANSMISSION TEST SET REPAIRED
Available*
Item # 25395000
Model # AM-5
$367.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Test Trans
Test Equipment
Transmission Testing
T-1 Wideband
Ameritech
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
AMERITEC AM5 TRANSMISSION TEST SET REPAIRED The Ameritech Model AM5E Wideband Transmission Test Set is a microprocessor based test instrumnet used to measure transmission impairment on 2 and 4 wire telephone lines in accordance with IEEE Standard 743-1984 (Bell Standard 41009). The instrument contains measurement circuitry able to measure:
level (-65 to + 10 dBm)
Frequency 20 Hz to 110 kHz)
Noise (10 to 100 dBrn)
signal to noise-ratio (10 to 50 dB)
Noise to ground (40 to 130 dBrn)
Impulse Noise (3 level)
2 and 4 wire return loss
P/AR
The instrument also contains a seperate full function signal generator able to generate the test tones normally used with the above tests.
The instrument contains 4 impedance selections per line, seperate DC hold circuits, pulse, MF, and DTMF signalling, Built-in speaker monitor and talk microphone
The unit operates on 115 or 230 VAC 50/60 Hertz or optional battery pack (sold seperately).
