CHANNELL BMT-60916000787 6 PAIR BRACKET MOUNT WIRE TERMINAL
Available*
Item # 13508250
Model # BMT-60916000787
$47.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Terminals
Material and Supplies
Building Entrance Terminals- Pedestal
PM Type
Channell
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

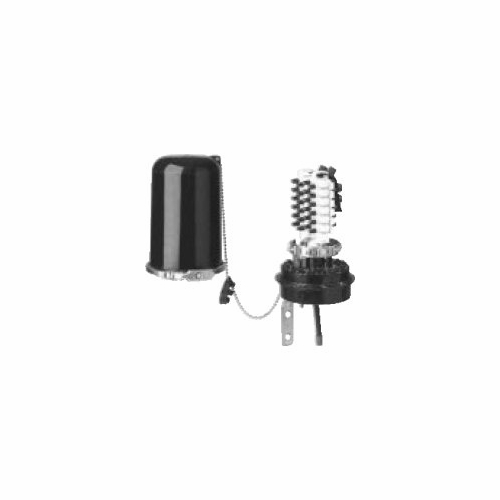

CHANNELL BMT-60916000787 6 PAIR BRACKET MOUNT WIRE TERMINAL NEW BRACKET MOUNTED TERMINAL (BMT™) SERIES
TELECOM CLOSURE PRODUCTS
BMT 609 Dimensions: 6" (152.4mm) diameter 9" (228.6mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 12 lbs (5.5 kg) carton
BMT 612 Dimensions: 6" (152.4mm) diameter 12" (304.8mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 14 lbs (6.4 kg) carton
BMT 620 Dimensions: 6" (152.4mm) diameter 20" (508mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 17 lbs (7.7 kg) carton
BMT 624 Dimensions: 6" (152.4mm) diameter 24" (609.6mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 32 lbs (14.6 kg) carton
For buried, underground, marina and aerial applications. Airtight and watertight. Re-enterable enclosure. Neoprene sealing grommets and O-rings effectively seal housing and cables. High impact, UV resistant thermoplastic material is resistant to corrosive environments. Lockable sealing clamp. Non-conductive wire runs in block for good housekeeping. Available with filled cable for buried applications, or aircore cable for underground applications. Available with pre-installed service wires in 3-pair, 5-pair, or 6-pair configurations. Removable service wire plugs facilitate up to 16 service wires. Wire gauge provided to determine O.D. of service wire. Grommet cards ordered separately for applicable service wire diameters (refer to page ??). Lockable Sealing Clamp with 216B Handle Service Wire Gauge Grommet Card
diameter 6" length 9" terminal pairs terminal block type cable type service wire grommet sealing range (outside wire diameter)
BMT 609 Dimensions: 6" (152.4mm) diameter 9" (228.6mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 12 lbs (5.5 kg) carton
BMT 612 Dimensions: 6" (152.4mm) diameter 12" (304.8mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 14 lbs (6.4 kg) carton
BMT 620 Dimensions: 6" (152.4mm) diameter 20" (508mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 17 lbs (7.7 kg) carton
BMT 624 Dimensions: 6" (152.4mm) diameter 24" (609.6mm) length of straight wall Shipping: 1 per carton, 30 per pallet Weight: 32 lbs (14.6 kg) carton
For buried, underground, marina and aerial applications. Airtight and watertight. Re-enterable enclosure. Neoprene sealing grommets and O-rings effectively seal housing and cables. High impact, UV resistant thermoplastic material is resistant to corrosive environments. Lockable sealing clamp. Non-conductive wire runs in block for good housekeeping. Available with filled cable for buried applications, or aircore cable for underground applications. Available with pre-installed service wires in 3-pair, 5-pair, or 6-pair configurations. Removable service wire plugs facilitate up to 16 service wires. Wire gauge provided to determine O.D. of service wire. Grommet cards ordered separately for applicable service wire diameters (refer to page ??). Lockable Sealing Clamp with 216B Handle Service Wire Gauge Grommet Card
diameter 6" length 9" terminal pairs terminal block type cable type service wire grommet sealing range (outside wire diameter)
