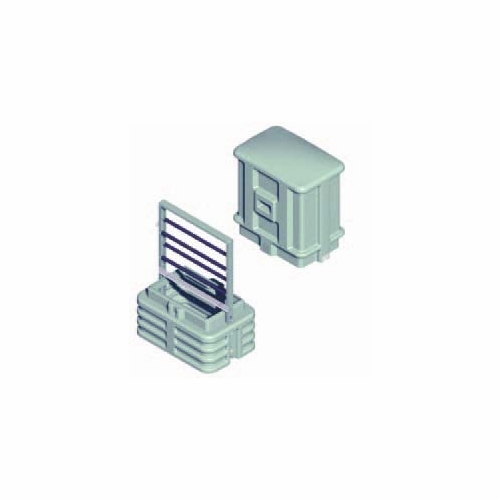

Emerson Pro1830 F1006910 18"X30" Non-Metallic Flood Protected Ped W/4 Splice Bars **Must Order 2**

Emerson Network Power Pro1830 F1006910 18"X30" Non-Metallic Flood Protected Ped W/4 Splice Bars **Must Order 2** Key Features Lift-Off Dome Permits 360° Access To All Wirework And Equipment Short Self-Supporting Split Base With Or Without Snap-On Mounting Stake For Added Stability “Slide And Secure” Mounting Plate Easily Locks Into Base, Simplifying Installation Universal Mounting Plate Hole Pattern Accepts All Types Of Terminal Blocks And Provides Greater Mounting Space Removable Service Wire Channel For Greater Capacity Needs Entry Port Above Bottom Edge Prevents Loss Of Gravel In The Base Seamless Integral Flood Dome Protects Wirework From Flood Submersion; No Joint Worries Service Drops Are Routed From The Service Channel, To The Bond Bracket, To The Block, For Efficient Wire Management Single Point Self-Locking Cover Provides Security Rus Listed

Description The Proform Series Of Pedestals Are The Premier Line Of Non-Metallic Pedestals From Emerson Network Power Network Power. These Pedestals Incorporate Strength, Rigidity And Security All In A High Performance Thermo-Plastic Material Designed To Telcordia Gr-13 Core And Rdup Pe-91 Specifications.

The Proform Pedestal Provides The Most Craft-Friendly Design Presently On The Market. Optimal Working Space Is Ensured For Splicing, Bonding And Grounding, Terminal Block Attachment, Service Wire Entry, Conduit Placement, And Wire Grooming And Management. Further The Proform Pedestal Provides Simplified Installation Through Its Split/Rehab Base Design, Slide And Secure Mounting Plate Assembly, And Self-Latching Dome. To Accommodate Varying Soil Conditions Proform Is Available In A Self-Supporting Short Base Or A Snap-On Mounting Stake. Supplemental Mounting Stakes Are Also Available If Additional Stability Is Required.

The Proform Pedestal’S Unique Shape Provides Superior Splicing Capacity, To Better Secure Open Wire Bundles And/Or Wirework Enclosures. Its Shape Also Provides Improved Aesthetics Over Competitive Plastic Pedestals, For A “Less Industrial” Appearance.

Application Proform Series Pedestals Are Ideal For Applications Where Non-Metallic Construction, Flood Protection, Or 360° Access Is Desired. These Pedestals Can Be Configured For Buried Distribution Telecommunications Equipment, Including Splice And Splice/Fixed Count Termination Applications.

Dome Single Point Self-Locking Integral Flood Protection Available Increased Splice Capacity Lift-Off Handlesmounting “Slide And Secure” Snap In Ease Universal Mounting Pattern Wire Grooming Bonding Flexibility High Capacity Splice Ladder Secure Splice Ladder Snap “C” Bracket Option "S" Bracket Option

Base Short Self Supporting Split/Rehab Base Snap-On Stake (Optional) / Integral Spade Base Tool-Less Installation In Ground Stability Multiple Mounting Positions Molded In Ground Line Removable Front Access Service Wire

Dimensions Pedestal A B* C D E Short Self-Supporting Base Pro6 45-In. 35-In. 30-In. 9-In. 6.5-In. Pro8 45-In. 35-In. 30-In. 10.5-In. 8-In. Pro10 45-In. 35-In. 30-In. 12-In. 10.8-In. Pro12 45-In. 35-In. 30-In. 14.5-In. 11.5-In. Pro14 51-In. 38-In. 36-In. 17.7-In. 17.7-In. Pro1420 51-In. 38-In. 36-In. 23.6-In. 17.6-In. Pro1830 51-In. 38-In. 36-In. 33.8-In. 21.8-In. Snap-On Stake/Integral Spade Base Pro6 65-In. 35-In. 30-In. 9-In. 6.5-In. Pro8 65-In. 35-In. 30-In. 10.5-In. 8-In. Pro10 65-In. 35-In. 30-In. 12-In. 10.8-In. Pro12 60-In. 35-In. 30-In. 14.5-In. 11.5-In.

Ordering Information Catalog Part Rdup Number Number Description Equivalents Pro6Hirng F1004818 6-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Mounting Plate Bd3 & Bd14 Pro6Hsrng F1004819 6-In. Non-Metallic Split-Base Pedestal With Mounting Plate Bd3 & Bd14 Pro6Hicng F1004816 6-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And “C” Bracket Bd3 & Bd14 Pro6Hscng F1004817 6-In. Non-Metallic Split-Base Pedestal With “C” Bracket Bd3 & Bd14 Pro6Hisng F1005455 6-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Splice Bracket Bd3 & Bd14 Pro6Hssng F1005456 6-In. Non-Metallic Split-Base Pedestal With Splice Bracket Bd3 & Bd14 Pro6Hirnge F1006562 6-In. Non-Metallic Split Base Pedestal With Snap-On Stake, Empty Pro6Hsrnge F1006563 6-In. Non-Metallic Split Base Pedestal, Empty Pro8Hirng F1005007 8-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Mounting Plate Bd4 & Bd15 Pro8Hsrng F1005008 8-In. Non-Metallic Split-Base Pedestal With Mounting Plate Bd4 & Bd15 Pro8Hicng F1005005 8-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And “C” Bracket Bd4 & Bd15 Pro8Hscng F1005006 8-In. Non-Metallic Split-Base Pedestal With “C” Bracket Bd4 & Bd15 Pro8Hisng F1005457 8-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Splice Bracket Bd4 & Bd15 Pro8Hssng F1005458 8-In. Non-Metallic Split-Base Pedestal With Splice Bracket Bd4 & Bd15 Pro8Hirnge F1006564 8-In. Non-Metallic Split Base Pedestal With Snap-On Stake, Empty Pro8Hsrnge F1006565 8-In. Non-Metallic Split Base Pedestal, Empty Pro10Hirng F1005011 10-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Mounting Plate Bd5 & Bd16 Pro10Hsrng F1005012 10-In. Non-Metallic Split-Base Pedestal With Mounting Plate Bd5 & Bd16 Pro10Hicng F1005009 10-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And “C” Bracket Bd5 & Bd16 Pro10Hscng F1005010 10-In. Non-Metallic Split-Base Pedestal With “C” Bracket Bd5 & Bd16 Pro10Hisng F1005459 10-In. Non-Metallic Split-Base Pedestal With Snap-On Stake And Splice Bracket Bd5 & Bd16 Pro10Hssng F1005460 10-In. Non-Metallic Split-Base Pedestal With Splice Bracket Bd5 & Bd16 Pro10Hirnge F1006527 10-In. Non-Metallic Split Base Pedestal With Snap-On Stake, Empty Pro10Hsrnge F1006528 10-In. Non-Metallic Split Base Pedestal, Empty Pro12Hirng F1005015 12-In. Non-Metallic Split-Base Pedestal With Integral Spade And Mounting Plate Pro12Hsrng F1005016 12-In. Non-Metallic Split-Base Pedestal With Mounting Plate Pro12Hicng F1005013 12-In. Non-Metallic Split-Base Pedestal With Integral Spade And “C” Bracket Pro12Hscng F1005014 12-In. Non-Metallic Split-Base Pedestal With “C” Bracket Pro12Hisng F1005461 12-In. Non-Metallic Split-Base Pedestal With Integral Spade And Splice Bracket Pro12Hssng F1005462 12-In. Non-Metallic Split-Base Pedestal With Splice Bracket Pro12Hirnge F1006529 12-In. Non-Metallic Split Base Pedestal With Integral Spade, Empty Pro12Hsrnge F1006530 12-In. Non-Metallic Split Base Pedestal, Empty Pro14 F1007436 14-In. X 14-In. Non-Metallic Flood Protected Pedestal With (2) Splice Bars Pro1420 F1006909 14-In. X 20-In. Non-Metallic Flood Protected Pedestal With (4) Splice Bars Pro1830 F1006910 18-In. X 30-In. Non-Metallic Flood Protected Pedestal With (4) Splice Bars
