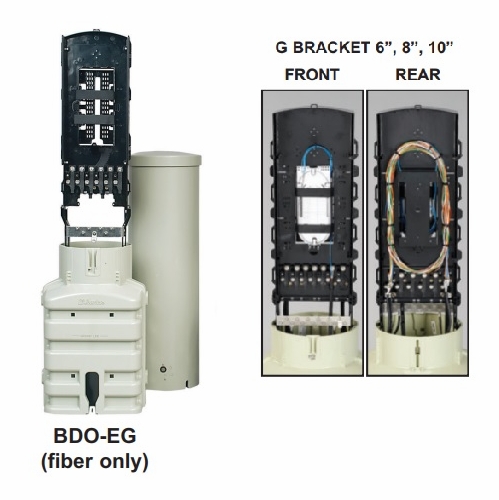

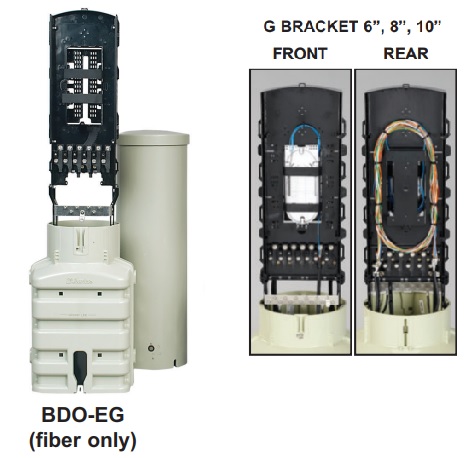

CHARLES BDO204-EG 8 inch PEDESTAL EXTENDED CAPACITY SPLIT BASE G BRACKET (FIBER ONLY), BOND BAR
Available*
Item # 11184700
Model # BDO204-EG
$241.37
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pedestals
Material and Supplies
Closures
Closures Pedestal Style
Charles Industries Ltd
Pedestal Enclosures
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
CHARLES BDO204-EG 8" PEDESTAL EXTENDED CAPACITY SPLIT BASE G BRACKET (FIBER ONLY), BOND BAR
CHARLES BDO204-EG 8" PEDESTAL EXTENDED CAPACITY SPLIT BASE G BRACKET (FIBER ONLY), BOND BAR
Part # BDO204-EG Descript. 8" dia. pedestal, expanded-capacity split base, G bracket (fiber only), bond bar
Add a T suffix to part number to include a 4x9" splice tray (Example: BDO205-EGT) Add a "V" after "E" of part number for vault mount base & hardware (Example: BDO 6-EVG)
Diameter 8" Drop Qty. 8 Splitters (Tray) 1x4 or 1x8 12 Fiber Ribbon Storage (Opening 12ftħ2ft) 36 Ribbons Loose Tube Storage (Opening 12ftħ2ft) 12 Tubes Splice Tray Cap. 6 (4"x9") Max. Splice 12 Fibers per Tray 12 Fibers per Tray 72 24 Fibers per Tray 144 48 Fibers per Tray*** N/A 144 FOSC A/B Fiber Ribbon Tray** 288 Notes: ** Capacities shown achieved using FOSC A/B Ribbon Fiber Tray(s). *** Capacities shown achieved using FOSC D Fiber Tray(s).
Pedlock BDO Series Fiber Pedestals are a key element of any FTTP solution. In both greenfield and brownfield fiber deployments, BDO Pedestals provide easy access to branch and drop splice while protecting and storing loose buffer tube fiber optic cables. The exclusive BDO fiber organizer allows technicians to mount splice trays and splitters securely with ample access to perform in-field splicing.
BDO Pedestals feature a non-metallic construction that offers superior OSP protection against floods, fire, dirt, insects and impact. An expanded-capacity split base is designed to easily install around conduit-fed cable bundles in new construction. BDO pedestals are an ideal solution for rehabilitation of metallic enclosures, and protection of co-located copper/fiber distribution points.
CHARLES BDO204-EG 8" PEDESTAL EXTENDED CAPACITY SPLIT BASE G BRACKET (FIBER ONLY), BOND BAR
Part # BDO204-EG Descript. 8" dia. pedestal, expanded-capacity split base, G bracket (fiber only), bond bar
Add a T suffix to part number to include a 4x9" splice tray (Example: BDO205-EGT) Add a "V" after "E" of part number for vault mount base & hardware (Example: BDO 6-EVG)
Diameter 8" Drop Qty. 8 Splitters (Tray) 1x4 or 1x8 12 Fiber Ribbon Storage (Opening 12ftħ2ft) 36 Ribbons Loose Tube Storage (Opening 12ftħ2ft) 12 Tubes Splice Tray Cap. 6 (4"x9") Max. Splice 12 Fibers per Tray 12 Fibers per Tray 72 24 Fibers per Tray 144 48 Fibers per Tray*** N/A 144 FOSC A/B Fiber Ribbon Tray** 288 Notes: ** Capacities shown achieved using FOSC A/B Ribbon Fiber Tray(s). *** Capacities shown achieved using FOSC D Fiber Tray(s).
Pedlock BDO Series Fiber Pedestals are a key element of any FTTP solution. In both greenfield and brownfield fiber deployments, BDO Pedestals provide easy access to branch and drop splice while protecting and storing loose buffer tube fiber optic cables. The exclusive BDO fiber organizer allows technicians to mount splice trays and splitters securely with ample access to perform in-field splicing.
BDO Pedestals feature a non-metallic construction that offers superior OSP protection against floods, fire, dirt, insects and impact. An expanded-capacity split base is designed to easily install around conduit-fed cable bundles in new construction. BDO pedestals are an ideal solution for rehabilitation of metallic enclosures, and protection of co-located copper/fiber distribution points.
