Charles Cplm8-Ic 8" Pedlock Pedestal Integral Stake Base Magnum Backboard Offset Terminal Ground New
Available*
Item # 11250610
Model # CPLM8-IC
$93.68
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.

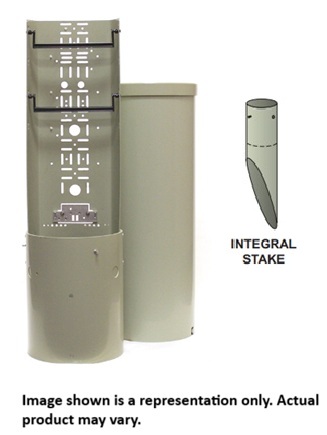

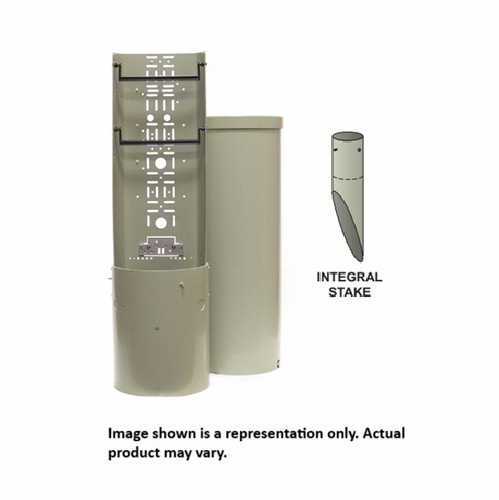

(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
PEDESTALS
Material and Supplies
Closures
Closures Pedestal Style
COIL SALES AND MANUFACTURING COMPANY
Pedestal Enclosures
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Charles Industries Cplm8-Ic 8" Pedlock Pedestal Integral Stake Base Magnum Backboard Offset Terminal Ground New Cplm 8-Ic 8" Pedestal, Intergral Stake Base, Magnum Backboard, Offset Terminal Ground
Charles Industries Pedlock Magnum Pedestals (Cplm) Provide Superior Environmental Protection Of Copper Buried Distribution Points In The Outside Plant. Cplm Pedestals Are Designed For Universal Use, With A Good-Housekeeping Backboard That Offers Greater Splicing Areas And Many Convenient Attachment Points For Terminal Blocks And Other Hardware, With Optional Ladder Bar Attachments For Large Cable Bundle Storage. Cplm Pedestals Feature A Non-Metallic Pvc Construction That Won’T Rust, Corrode, Chip Or Fade. A Lift-Off Locking Dome Not Only Provides Technician- Friendly 360º Access To Internal Working Areas, But Also Creates A “Bell-Jar” Effect That Protects Internal Components From Floods. A Variety Of Offered Sizes And Accessories Ensure The Right Fit For Every Application, Including Splice Points, Subscriber Distribution Points, And Transmission Access Locations.
Product Specifications Pedestal Splicing Max. Splice Weight Weight Diameter Volume Capacity (Pole/Stake Base) (Integral Stake) 6” 450 Cu. In. 700 Wires/350 Pairs 13.0 Lbs. 16.0 Lbs. 8” 750 Cu. In. 1,000 Wires/500 Pairs 16.5 Lbs. 20.5 Lbs. 10” 1,450 Cu. In. 1,600 Wires/800 Pairs 21.0 Lbs. 27.0 Lbs
Product Features Three Diameters: 6’, 8’ And 10’ Durable, Noncorrosive, Green Pvc Construction 360° Access To Cable And Apparatus Universal Backboard For Good Housekeeping With Built-In Aluminum Ground Plate, Cable Attachments And Optional Offset Terminal Grounds Locking Bolt For Security (216 Tool) Service Wire Channel Secures And Protects Feed And Drop Cables (Excludes Intergral Base) Meets Or Exceeds Industry Standards For Durability And Long Service Life Mounting Hardware Provided Optional 2-Piece Rehab (Split) Base Available For Easy Rehabilitation Of Damaged Pedestals Without Disrupting Splice Bundle Optional Shroud Provides Conductor Protection Optional Self-Locking Dome Prevents Accidental Dome Displacement From High Water Rise When Cplm Is Not Locked Properly Pole, Stake Or Stand-Alone Installation Beveled Bottom Cutout Design On Optional Integral Stakes Provide For Easy, Stable Installations Rdup Listed
Freight Class 100 Nmfc 063300-06
Charles Industries Pedlock Magnum Pedestals (Cplm) Provide Superior Environmental Protection Of Copper Buried Distribution Points In The Outside Plant. Cplm Pedestals Are Designed For Universal Use, With A Good-Housekeeping Backboard That Offers Greater Splicing Areas And Many Convenient Attachment Points For Terminal Blocks And Other Hardware, With Optional Ladder Bar Attachments For Large Cable Bundle Storage. Cplm Pedestals Feature A Non-Metallic Pvc Construction That Won’T Rust, Corrode, Chip Or Fade. A Lift-Off Locking Dome Not Only Provides Technician- Friendly 360º Access To Internal Working Areas, But Also Creates A “Bell-Jar” Effect That Protects Internal Components From Floods. A Variety Of Offered Sizes And Accessories Ensure The Right Fit For Every Application, Including Splice Points, Subscriber Distribution Points, And Transmission Access Locations.
Product Specifications Pedestal Splicing Max. Splice Weight Weight Diameter Volume Capacity (Pole/Stake Base) (Integral Stake) 6” 450 Cu. In. 700 Wires/350 Pairs 13.0 Lbs. 16.0 Lbs. 8” 750 Cu. In. 1,000 Wires/500 Pairs 16.5 Lbs. 20.5 Lbs. 10” 1,450 Cu. In. 1,600 Wires/800 Pairs 21.0 Lbs. 27.0 Lbs
Product Features Three Diameters: 6’, 8’ And 10’ Durable, Noncorrosive, Green Pvc Construction 360° Access To Cable And Apparatus Universal Backboard For Good Housekeeping With Built-In Aluminum Ground Plate, Cable Attachments And Optional Offset Terminal Grounds Locking Bolt For Security (216 Tool) Service Wire Channel Secures And Protects Feed And Drop Cables (Excludes Intergral Base) Meets Or Exceeds Industry Standards For Durability And Long Service Life Mounting Hardware Provided Optional 2-Piece Rehab (Split) Base Available For Easy Rehabilitation Of Damaged Pedestals Without Disrupting Splice Bundle Optional Shroud Provides Conductor Protection Optional Self-Locking Dome Prevents Accidental Dome Displacement From High Water Rise When Cplm Is Not Locked Properly Pole, Stake Or Stand-Alone Installation Beveled Bottom Cutout Design On Optional Integral Stakes Provide For Easy, Stable Installations Rdup Listed
Freight Class 100 Nmfc 063300-06
