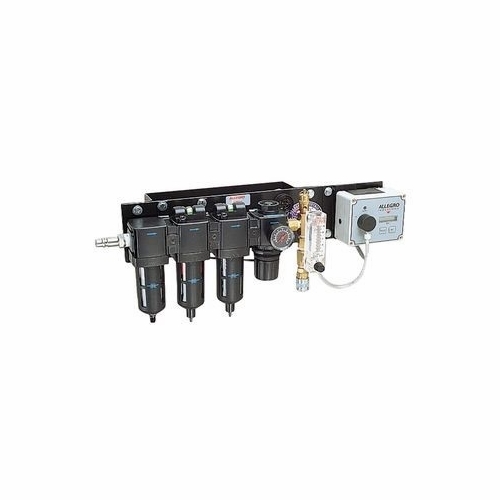

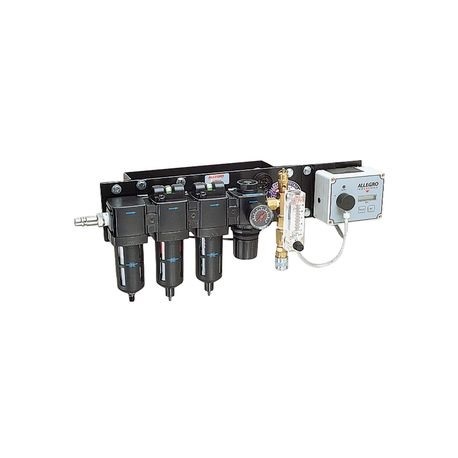

Allegro 9878-40 Eight-Worker Wall-Air Filter Panel w/ AC/DC CO Monitor
Available*
Item # 80054590
Model # 9878-40
$2,852.55
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Allegro 9878-40 Eight-Worker Wall-Air Filter Panel w/ AC/DC CO Monitor
GENERAL DESCRIPTION: Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements an optional CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 100 CFM (169.9 m3 /hr) of air within a 5-125 PSI (0.34-8.62 bar) range.
CONSTRUCTION: • 12 gauge black powdered coated steel mounting bracket • All brass plumbing with quick-disconnect Hansen couplers
CO MONITOR: Power source: 115V AC to 9V DC power adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC adapter) Alarm Setting: 10 PPM (Canada: 5PPM) External Connections: Optional Strobe Light Alarm. Audible: 90 decibel Piezo Alarm. Visual: External power LED light signal. Sensor: Electrochemical replaceable Display: Liquid crystal Keys: Mode & Set Modes: Normal Operation, Peak, Battery Charge and Calibration mode. Calibration: Self adjusting calibration to 20 PPM CO
FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain Second Stage: 0.010 micron coalescing filter element and manual drain Third Stage: 0.003 micron activated carbon filter element and manual drain Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
GENERAL DESCRIPTION: Allegro air filtration panels filter impurities and hydrocarbons from an air compressor to convert to breathable air. To meet OSHA requirements an optional CO monitor is available for continuous monitoring of carbon monoxide levels. Panel provides up to 100 CFM (169.9 m3 /hr) of air within a 5-125 PSI (0.34-8.62 bar) range.
CONSTRUCTION: • 12 gauge black powdered coated steel mounting bracket • All brass plumbing with quick-disconnect Hansen couplers
CO MONITOR: Power source: 115V AC to 9V DC power adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC adapter) Alarm Setting: 10 PPM (Canada: 5PPM) External Connections: Optional Strobe Light Alarm. Audible: 90 decibel Piezo Alarm. Visual: External power LED light signal. Sensor: Electrochemical replaceable Display: Liquid crystal Keys: Mode & Set Modes: Normal Operation, Peak, Battery Charge and Calibration mode. Calibration: Self adjusting calibration to 20 PPM CO
FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain Second Stage: 0.010 micron coalescing filter element and manual drain Third Stage: 0.003 micron activated carbon filter element and manual drain Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
