Product Description

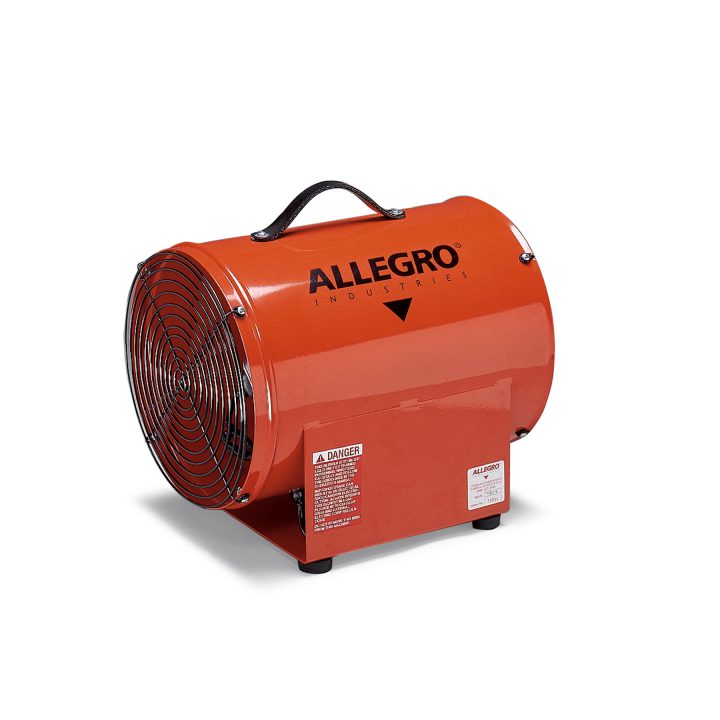

Allegro 9509-01E 12" Axial Explosion-Proof (Ex) Metal Blower, 220V/50 Hz
12" Axial Explosion-Proof (Ex) Metal Blower (220V Ac/50 Hz).
Does Not Meet Csa C22.2 No. 113 Requirements.
The Allegro 12" Explosion-Proof Blower Is Designed For Applications
Requiring Larger Amounts Of Air Output. It Offers Portability And Minimal Weight And
Includes A 1/3 Hp Explosion-Proof Motor With An Efficient Three-Blade Impeller In A Rugged Metal Housing.
Construction:
� Complete Unit Epoxy Powder Coated In Orange
� Attached Duct At Either Flange For Intake Or Exhaust Ventilation
� 16-Gauge Cold Rolled Steel Housing
� 14-Gauge Steel Base
� 3-Ply Rubber Carrying Handle
� Steel Black Powder Coated Grill
� Equipped With Four Rubber Feet
� Note: Ex Blowers Require An Explosion-Proof Socket (9503-06)
Motor:
Hp: 1/3 Hp
Voltage/Hz: 220V Ac, 50 Hz, Single Phase
Maximum Rpm: 2750 (Loaded At 220V, 50Hz)
Current Draw: 1.2 A (Loaded At 220V, 50Hz)
Cord: 25� (7.62M) 18/3 Awg, Sj00W 90C 300V Neoprene Medium Duty
Fan:
� Anti-Static Glass Reinforced Polyimide (Pagas) Three Blade Fan, With Aluminum Hub
L 15 1/2" X 12" W X 15" H
Free Air One 90� Bend Two 90� Bends
1636 Cfm 1255 Cfm 1156 CfmRead More
