GREENLEE HVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043
Available*
Item # 80015320
Model # 783310557043
$1,962.29
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE HVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043
GREENLEE HVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043

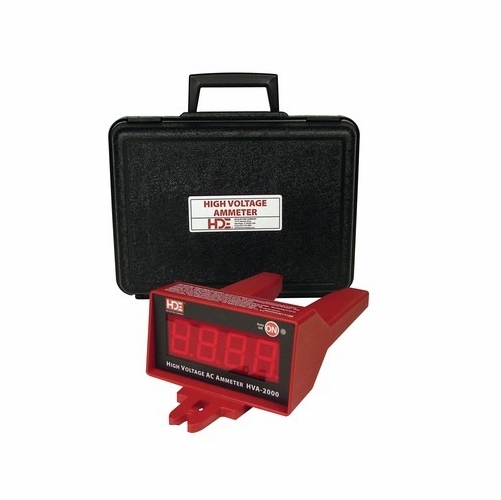

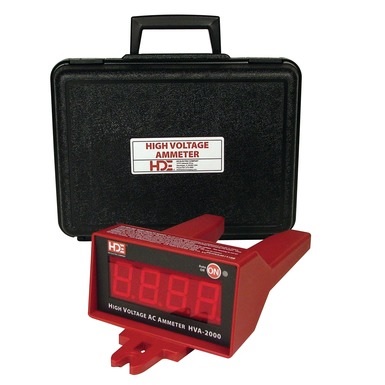

High Voltage Ammeter 2000A with Plastic Carrying Case Cat #: HVA-2000H UPC #: 783310557043
Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground Stores the last 4 readings Dual measurement modes, peak hold and real time Takes spot-load checks with ease Verifies phases are balanced Versatile for overhead and underground applications Compact, lightweight design
Specifications Sub Brand HDE Type Ammeter Model HVA-2000 Voltage Rating 0 - 500kV line-to-ground Amperage Rating 1 -2000A Accuracy 50-60Hz - 1-10A - 1% +/-2 counts, 11-100A - 1% +/-3 counts, 101-500A- 1% +/-6 counts, 501-2000A- 1% +/-8. 252-49Hz and 61-500Hz - 1-10A - 2% +/-3 counts, 11-100A-2% +/-4 counts, 101-500A-2% +/-6 counts, 501-2000A - 2% +/-8 counts Display LED display Operating Temperature -20°F to +140°F (-29°C to +60°C) Dimensions 4"H x 6.6"W x 11.5"L Frequency Rating 25 - 500Hz Included HVA-2000 Ammeter, CS-HVA Carrying Case
GREENLEE HVA-2000H DIGITAL AMMETER 2000A, Base 2 52087338 / 783310557043
High Voltage Ammeter 2000A with Plastic Carrying Case Cat #: HVA-2000H UPC #: 783310557043
Measures AC current from 1 to 2000 Amps on system voltages up to 500kV line-to-ground Stores the last 4 readings Dual measurement modes, peak hold and real time Takes spot-load checks with ease Verifies phases are balanced Versatile for overhead and underground applications Compact, lightweight design
Specifications Sub Brand HDE Type Ammeter Model HVA-2000 Voltage Rating 0 - 500kV line-to-ground Amperage Rating 1 -2000A Accuracy 50-60Hz - 1-10A - 1% +/-2 counts, 11-100A - 1% +/-3 counts, 101-500A- 1% +/-6 counts, 501-2000A- 1% +/-8. 252-49Hz and 61-500Hz - 1-10A - 2% +/-3 counts, 11-100A-2% +/-4 counts, 101-500A-2% +/-6 counts, 501-2000A - 2% +/-8 counts Display LED display Operating Temperature -20°F to +140°F (-29°C to +60°C) Dimensions 4"H x 6.6"W x 11.5"L Frequency Rating 25 - 500Hz Included HVA-2000 Ammeter, CS-HVA Carrying Case
