GREENLEE 43178 CHAINSAW, LONG REACH (62") 50431781 / 783310431787
GREENLEE 43178
CHAINSAW, LONG REACH (62") 50431781 / 783310431787

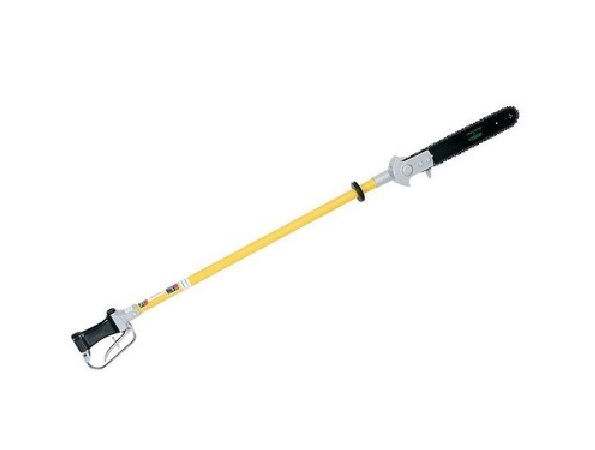

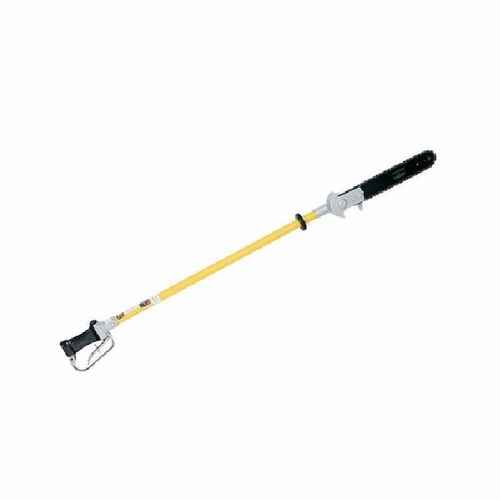

Long Reach Chain Saw (62")
Cuts hard-to-reach branches from aerial basket or from the ground
Super Spool selector control for use on Open and Closed-Center hydraulic systems
Available in three lengths
Insulated fiberglass extension tubes, tested to meet OSHA Regulation 1910.269
Safety features include: two-step trigger, trigger guard, and fully covered sprocket guard
Anti-kickback chain and automatic chain oiler
Rugged high torque gear motor
Unfilled and foam-filled extension tube versions offered
Specifications
Accessory 54923 HTMA Male Coupler, 54924 HTMA Female Coupler
Application For Use On Open And Closed-Center Hydraulic Systems
Bar Gauge 0.058 IN (1.470 MM)
Chain Size 0.325 IN (8.300 MM) Pitch
Cutting Capacity 13.000 IN (330.000 MM)
Extension Type Fiberglass - Tested To 100 KVA For 5 MINT
Flow Range 5 - 8 GPM (19 - 30 LPM)
Length 62.500 IN (1.600 M)
Operating Pressure 1000 - 2000 PSI (69 - 140 BAR)
Pressure Port 9/16-18 SAE O-Ring
Return Port 3/4-16 SAE O-Ring
Standard Meet OSHA Regulation 1910.269
System Super Spool Selector Control For Use On Open And Closed-Center Hydraulic Systems
Type Long Reach
Weight 8-1/2 LB (3.900 KG)
Width 4.000 IN (102.000 MM)
