Product Description

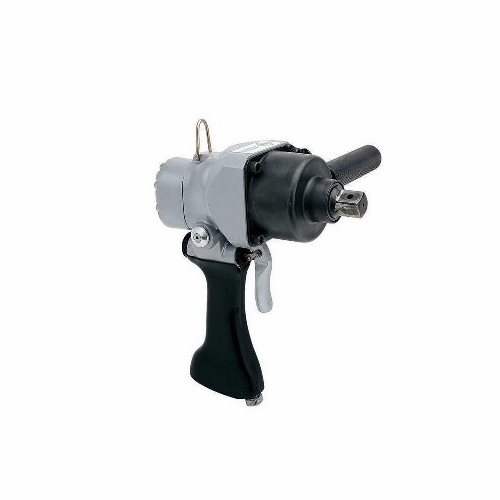

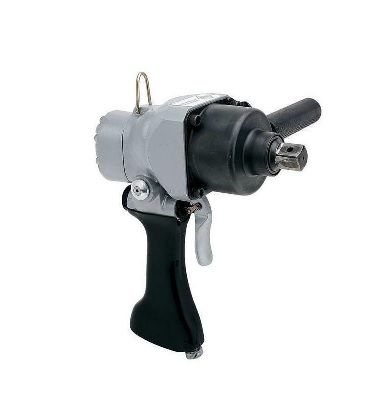

Greenlee H6510A Wrench Assembly,Impact (H6510) 50422681 / 783310422686
Greenlee H6510A
Wrench Assembly,Impact (H6510) 50422681 / 783310422686
Added Power And Torque For Heavy-Duty Jobs
Twin Hammer Design
Can Be Used On Either Open-Center Or Closed-Center System
Adjustable Torque Control
3/4 In Square Drive With Auxiliary Handle
Needle Bearing, Rugged Gear Motor Design For Long Life
Flow Range: 4 - 12 Gpm (15 - 45 Lpm)
Operating Pressure: 1000 - 2000 Psi (69 - 140 Bar)
Pressure Port: 3/4 - 16 Sae O-Ring
Return Port: 3/4 - 16 Sae O-Ring
Rpm: Range From 2700 Rpm At 6 Gpm (23 Lpm) (No Load)
Drive Connector Size
3/4" Square
Torque Range Ft Lbs
1060 Ft Lb At 6 Gpm (23 Lpm)
Torque Range Nm
1437 Nm At 6 Gpm (23 Lpm)
Length 9.690" (246.000 Mm)
Width 3.750" (95.000 Mm)
Height 11.690" (297.000 Mm)
Weight 6.96 Kg 15.34 LbRead More
