Product Description
Greenlee H4905A Extractor, Post (H4905) 50422372 / 783310422372
Greenlee H4905A
Extractor, Post (H4905) 50422372 / 783310422372

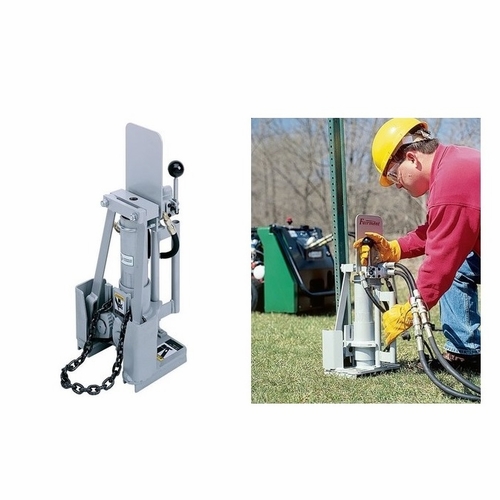

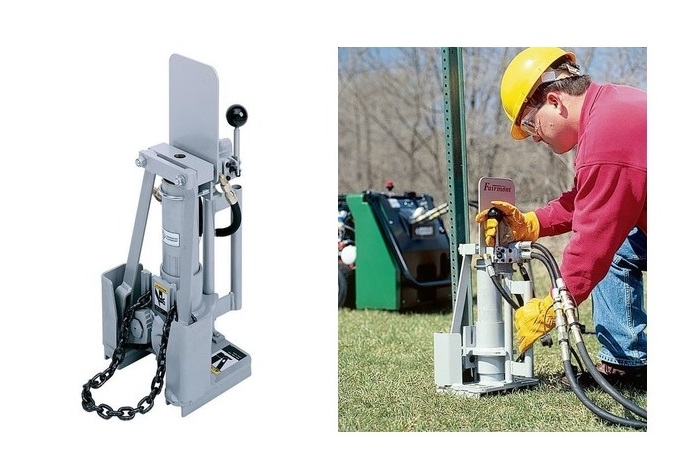

Sign Post Puller
Uses Serrated Jaws Or Wrap Around, High-Strength Alloy Chain
Able To Pull Most Any Post Size And Shape
Faster And Easier Than Conventional Manual Methods
Includes Pulling Chain
Specifications
Accessory 54923 Htma Male Coupler, 54924 Htma Female Coupler
Capacity 9800.000 Lb (4445.000 Kg) Lift
Chains 9/32 In (7.100 Mm) Alloy
Height 26.000 In (660.000 Mm) Retracted
Hydraulic Flow Range 4 - 6 Gpm (15 - 23 Lpm)
Includes Pulling Chain
Length 10.500 In (267.000 Mm)
Maximum Pressure 2000 Psi (138 Bar)
Operating Pressure 1000 - 2000 Psi (69 - 138 Bar)
Pressure Port 9/16 - 18 Sae O-Ring Thread
Replacement Part 42014 High-Strength Alloy Chain
Return Port 3/4 - 16 Sae O-Ring Thread
Stroke 5.000 In (127.000 Mm)
System Open Center System
Type Sign Post
Weight 70.000 Lb (31.800 Kg)
Width 10.000 In (254.000 Mm)Read More
