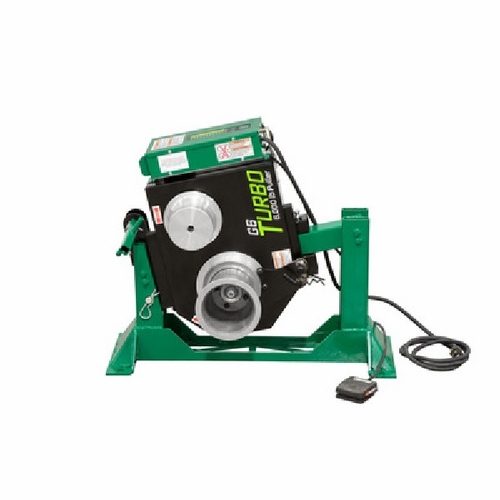

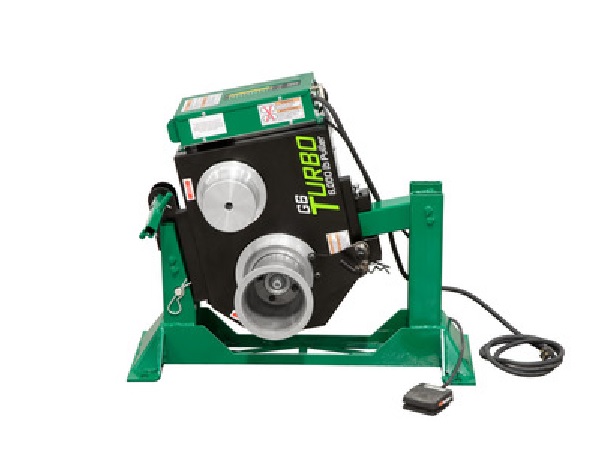

GREENLEE G6-F FLOOR MOUNT & PULLER (G6)(PKGD) 52085602 / 783310086314
Available*
Item # 80012570
Model # 783310086314
$8,387.66
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tugger
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE G6-F FLOOR MOUNT & PULLER (G6)(PKGD) 52085602 / 783310086314
GREENLEE G6-F FLOOR MOUNT & PULLER (G6)(PKGD) 52085602 / 783310086314
Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) Drive Motor : 120 VAC, 50/60 Hz, 12 amps No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.36 m/min) No Load Secondary Capstan Speed : High Speed 68 ft/min (20.74 m/min), Low Speed 35 ft/min (10.68 m/min) Pulling Force : 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary Floor Mount setup Includes : Force Gauge and foot switch
Specifications Type Cable Puller Application Pulling Cable Voltage Rating 120 Volts AC at 50/60 Hz Amperage Rating 20 Amps Mounting Floor Mount
GREENLEE G6-F FLOOR MOUNT & PULLER (G6)(PKGD) 52085602 / 783310086314
Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) Drive Motor : 120 VAC, 50/60 Hz, 12 amps No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min), Low Speed 11 ft/min (3.36 m/min) No Load Secondary Capstan Speed : High Speed 68 ft/min (20.74 m/min), Low Speed 35 ft/min (10.68 m/min) Pulling Force : 4000.000 LB (17.800 KN) Continuous, 5000.000 LB (22.200 KN) Intermittent, 6000.000 LB (26.700 KN) Momentary Floor Mount setup Includes : Force Gauge and foot switch
Specifications Type Cable Puller Application Pulling Cable Voltage Rating 120 Volts AC at 50/60 Hz Amperage Rating 20 Amps Mounting Floor Mount
