GREENLEE 07230 VALVE UNIT, REPLACEMENT(H4802-3) 52081225 / 783310072300
Available*
Item # 80012365
Model # 783310072300
$635.30
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 07230 VALVE UNIT, REPLACEMENT(H4802-3) 52081225 / 783310072300
GREENLEE 07230 VALVE UNIT, REPLACEMENT(H4802-3) 52081225 / 783310072300

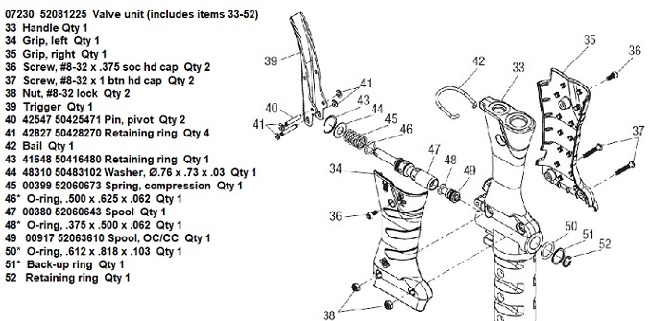

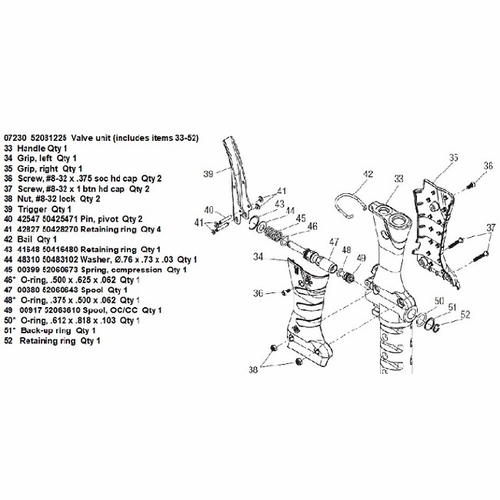

H4802-3 and H4802-5 Pole Tampers Parts 07230 52081225 Valve unit (includes items 33-52)
33 Handle Qty 1 34 Grip, left Qty 1 35 Grip, right Qty 1 36 Screw, #8-32 x .375 soc hd cap Qty 2 37 Screw, #8-32 x 1 btn hd cap Qty 2 38 Nut, #8-32 lock Qty 2 39 Trigger Qty 1 40 42547 50425471 Pin, pivot Qty 2 41 42827 50428270 Retaining ring Qty 4 42 Bail Qty 1 43 41648 50416480 Retaining ring Qty 1 44 48310 50483102 Washer, Ø.76 x .73 x .03 Qty 1 45 00399 52060673 Spring, compression Qty 1 46* O-ring, .500 x .625 x .062 Qty 1 47 00380 52060643 Spool Qty 1 48* O-ring, .375 x .500 x .062 Qty 1 49 00917 52063610 Spool, OC/CC Qty 1 50* O-ring, .612 x .818 x .103 Qty 1 51* Back-up ring Qty 1 52 Retaining ring Qty 1
GREENLEE 07230 VALVE UNIT, REPLACEMENT(H4802-3) 52081225 / 783310072300
H4802-3 and H4802-5 Pole Tampers Parts 07230 52081225 Valve unit (includes items 33-52)
33 Handle Qty 1 34 Grip, left Qty 1 35 Grip, right Qty 1 36 Screw, #8-32 x .375 soc hd cap Qty 2 37 Screw, #8-32 x 1 btn hd cap Qty 2 38 Nut, #8-32 lock Qty 2 39 Trigger Qty 1 40 42547 50425471 Pin, pivot Qty 2 41 42827 50428270 Retaining ring Qty 4 42 Bail Qty 1 43 41648 50416480 Retaining ring Qty 1 44 48310 50483102 Washer, Ø.76 x .73 x .03 Qty 1 45 00399 52060673 Spring, compression Qty 1 46* O-ring, .500 x .625 x .062 Qty 1 47 00380 52060643 Spool Qty 1 48* O-ring, .375 x .500 x .062 Qty 1 49 00917 52063610 Spool, OC/CC Qty 1 50* O-ring, .612 x .818 x .103 Qty 1 51* Back-up ring Qty 1 52 Retaining ring Qty 1
