Product Description
Greenlee Ek425Vxdo12 Crimper, 6T V, Cjd3O, 12V 52086640 / 783310041290
Greenlee Ek425Vxdo12
Crimper, 6T V, Cjd3O, 12V 52086640 / 783310041290

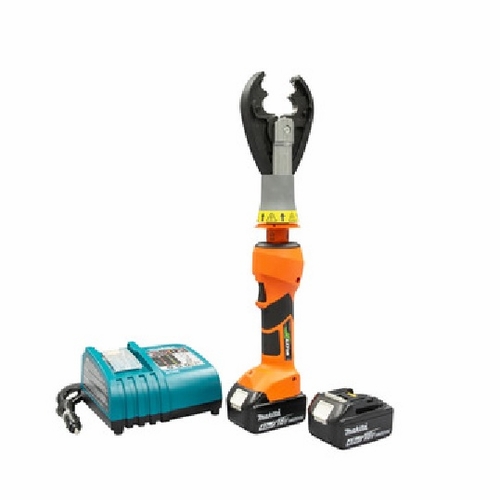

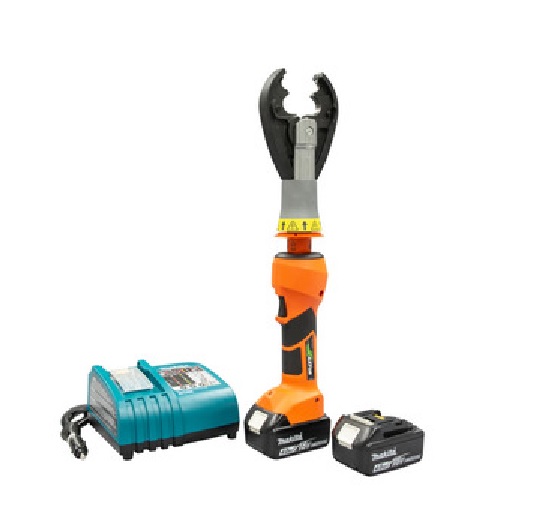

6 Ton Insulated Crimper With Cjd30 Head And 12V Charger
Cat #: Ek425Vxdo12 Upc #: 783310041290
1000V Insulation
Brush Guarded Head - Helps Avoid Accidental Contact With Conductors
Tri-Insulation Barrier - Provides Three (3) Layers Of Protection (Patent Pending)
360� Rotating Head - For Improved Agility In Confined Work Spaces
Double -Tap Safety Feature Option -Prevents Unintentional Operation
Bluetooth� Communication Connects With Greenlee I-Press� App
Equipped With Intelli-Crimp Technology
Specifications
Sub Brand Gator
Type Die Style Crimper
Application 6 Ton Crimping
Standard C/Us Ul Listed, Iec 62481-1; Vde, Csa, Met Tested
Overall Length 19 In (482Mm)
Crimping Force 12,000 Lbs. (53 Kn)
Crimping Capacity Connector 10-1/0 Awg 5/8 In Service Entrance Connectors, 1/0-4/0 Awg 0.840 Service Entrance Connectors, 6 - 4/0 Awg Aluminum H Taps, 10-2 Awg Copper H Taps, 6-2/0 Awg Copper Tension Splices, 6-4/0 Awg All Aluminum Tension Splices, 4-1/0 Awg One Piece Acsr
Connector Type Service Entrance Connectors, H-Taps, Tension Splices, Jumper Splices, Stirrups, Color Coded Lugs & Splices
Handle Type In-Line Style With Over Molded Rubber GripRead More
