GREENLEE 1079 RETRO FIT KIT (HID6506) 52058184 / 783310010791
Available*
Item # 80011265
Model # 783310010791
$1,447.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 1079 RETRO FIT KIT (HID6506) 52058184 / 783310010791
GREENLEE 1079 RETRO FIT KIT (HID6506) 52058184 / 783310010791

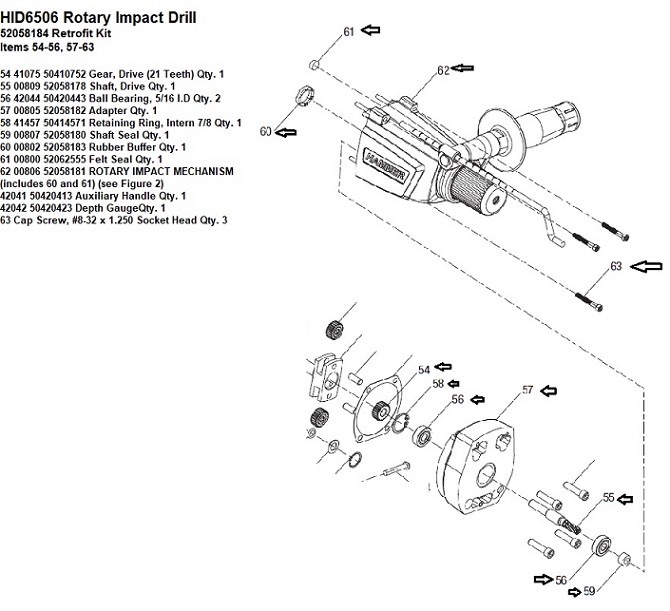

Parts for HID6506 Rotary Impact Drill
Kit † 52058184 Retrofit Kit (converts Serial Code GAT to AML (includes Drive Shaft Assembly and all items marked with †)
Items 54-56, 57-63
54 41075 50410752 Gear, Drive (21 Teeth) Qty. 1 55 00809 52058178 Shaft, Drive Qty. 1 56 42044 50420443 Ball Bearing, 5/16 I.D Qty. 2 57 00805 52058182 Adapter Qty. 1 58 41457 50414571 Retaining Ring, Internal 7/8 Qty. 1 59 00807 52058180 Shaft Seal Qty. 1 60 00802 52058183 Rubber Buffer Qty. 1 61 00800 52062555 Felt Seal Qty. 1 62 00806 52058181 ROTARY IMPACT MECHANISM (includes 60 and 61) (see Figure 2) 42041 50420413 Auxiliary Handle Qty. 1 42042 50420423 Depth GaugeQty. 1 63 Cap Screw, #8-32 x 1.250 Socket Head Qty. 3
GREENLEE 1079 RETRO FIT KIT (HID6506) 52058184 / 783310010791

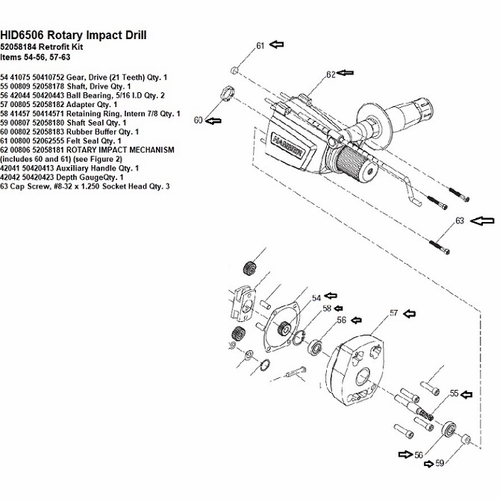

Parts for HID6506 Rotary Impact Drill
Kit † 52058184 Retrofit Kit (converts Serial Code GAT to AML (includes Drive Shaft Assembly and all items marked with †)
Items 54-56, 57-63
54 41075 50410752 Gear, Drive (21 Teeth) Qty. 1 55 00809 52058178 Shaft, Drive Qty. 1 56 42044 50420443 Ball Bearing, 5/16 I.D Qty. 2 57 00805 52058182 Adapter Qty. 1 58 41457 50414571 Retaining Ring, Internal 7/8 Qty. 1 59 00807 52058180 Shaft Seal Qty. 1 60 00802 52058183 Rubber Buffer Qty. 1 61 00800 52062555 Felt Seal Qty. 1 62 00806 52058181 ROTARY IMPACT MECHANISM (includes 60 and 61) (see Figure 2) 42041 50420413 Auxiliary Handle Qty. 1 42042 50420423 Depth GaugeQty. 1 63 Cap Screw, #8-32 x 1.250 Socket Head Qty. 3
