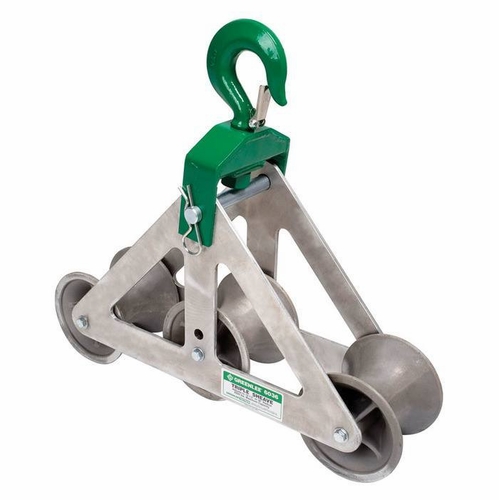

GREENLEE 6036 SHEAVE-HOOK TRIPLE (6036) 50315692/783310315698
Available*
Item # 80005043
Model # 783310315698
$1,080.45
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Sheaves
Tools
Line Construction- Placing
Blocks-Placing-Prelashing- Overlashing
Greenlee Textron
Block Parts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 6036 SHEAVE-HOOK TRIPLE (6036) 50315692/783310315698 NEW

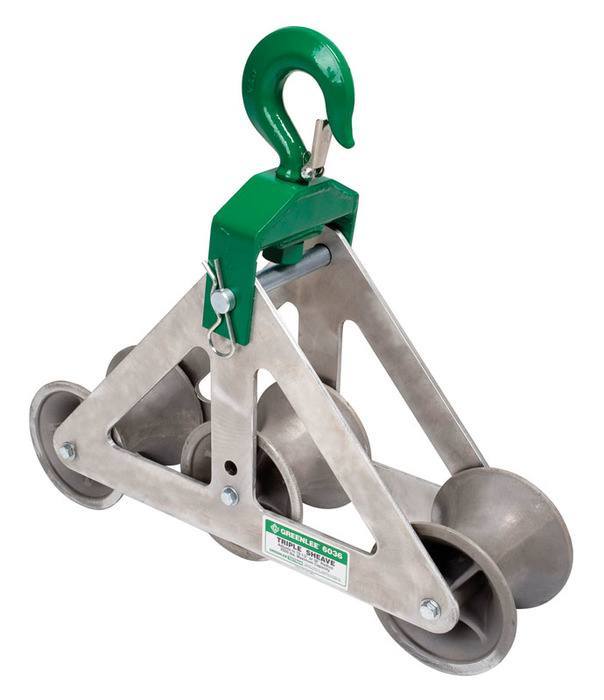

DESCRIPTION: SHEAVE-HOOK TRIPLE (6036) -Triple Sheave Cable Guide
Adjustable center sheave for 19-1/2 IN (495 mm) or 36 IN (914 mm) radius Forged steel closure type hook with 1-1/2 IN (38.1 mm) opening Aluminum frames for light weight Steel yoke is pinned for easy removal 21-7/8 IN (555 mm) high, 24 IN (610 mm) long, 7-3/8 IN (187 mm) wide with 5 IN (127 mm) wide sheaves Use with any cable puller whose maximum pulling forceis 6,500 lbs. (28.9 kN) or less
SPECIFICATIONS:
Capacity : 6500.000 LB (28.900 KN) Maximum Rated Includes : 3 X 31573 UPC 31573 Sheave Axle, 6 X 51434 UPC 51434 SheaveBolt Washer, 1 X 29600 UPC 29600 Sheave Pin, 2 X 50302 UPC 50302 Sheave Pin Clip, 6 X 16798 UPC 16798 Sheave Bushing, 3X 15362 UPC 15362 Sheave
WEIGHT: 28 lbs (12.700 KG)
CAT #: 6036 UPC #: 50315692/783310315698
PRODUCTS > Pulling > PULLING ACCESSORIES > Hook & Feeding Sheaves > SHEAVE-HOOK TRIPLE (6036)
DESCRIPTION: SHEAVE-HOOK TRIPLE (6036) -Triple Sheave Cable Guide
Adjustable center sheave for 19-1/2 IN (495 mm) or 36 IN (914 mm) radius Forged steel closure type hook with 1-1/2 IN (38.1 mm) opening Aluminum frames for light weight Steel yoke is pinned for easy removal 21-7/8 IN (555 mm) high, 24 IN (610 mm) long, 7-3/8 IN (187 mm) wide with 5 IN (127 mm) wide sheaves Use with any cable puller whose maximum pulling forceis 6,500 lbs. (28.9 kN) or less
SPECIFICATIONS:
Capacity : 6500.000 LB (28.900 KN) Maximum Rated Includes : 3 X 31573 UPC 31573 Sheave Axle, 6 X 51434 UPC 51434 SheaveBolt Washer, 1 X 29600 UPC 29600 Sheave Pin, 2 X 50302 UPC 50302 Sheave Pin Clip, 6 X 16798 UPC 16798 Sheave Bushing, 3X 15362 UPC 15362 Sheave
WEIGHT: 28 lbs (12.700 KG)
CAT #: 6036 UPC #: 50315692/783310315698
PRODUCTS > Pulling > PULLING ACCESSORIES > Hook & Feeding Sheaves > SHEAVE-HOOK TRIPLE (6036)
