TEMPO 577XL M90 LED SOURCE 850NM, 62.5/125M 577XL M90 52058726/783310000273
Available*
Item # 80004889
Model # 783310000273
$4,455.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Source
Fiber Optic Products
OTDR- Power Meter- Light Source- Idenitifiers- VFL
Fiber Light Source
Tempo Communications, Inc.
Fiber LED Source
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 577XL M90 LED SRCE 850NM, 62.5/125M 577XL M90 52058726/783310000273 NEW
DESCRIPTION: LED SOURCE 850NM, 62.5/125M 577XL M90

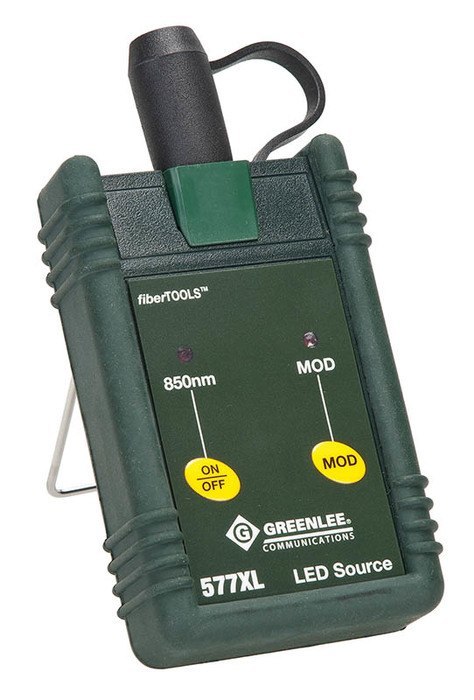

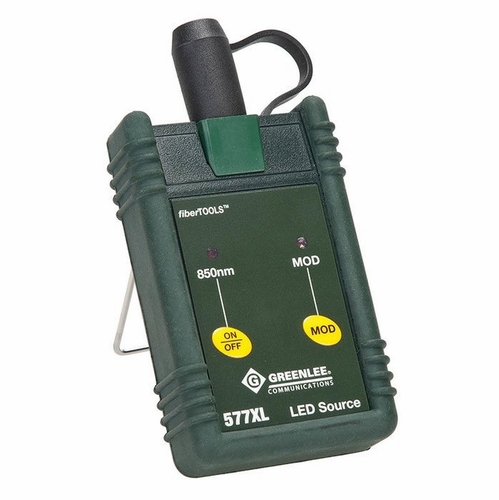

The 577XL LED source provides a light source to measure insertion loss on multi-mode optical fiber.
Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS:
Connector interface : Universal Connector Interface-Physical Contact (UCI-PC) Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 55 nm Measuring Range : 840 - 880 nm Modulation Frequency : 270 kHz, 1 And 2 kHz (± 5%) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : ±0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : 577XL Series Typical Power Output : -13 DBM (+/- 0.5 DB) For 62.5/125 GI FIBER Wavelength : 850 nm Center
WEIGHT: 241 G (8.5 OZ)
CAT #: 577LX M90 UPC #: 52058726/783310000273
PRODUCTS > Fiber Optic Instruments > HANDHELD > LED Sources > LED SRCE 850NM, 62.5/125M
DESCRIPTION: LED SOURCE 850NM, 62.5/125M 577XL M90
The 577XL LED source provides a light source to measure insertion loss on multi-mode optical fiber.
Stable calibrated output Easy to use Continuous wave and modulated output Long battery life - approximate 24 HR User selectable auto shut-off Rugged and splash-proof Economically priced
SPECIFICATIONS:
Connector interface : Universal Connector Interface-Physical Contact (UCI-PC) Dimensions : 2.8 (7.2 CM) Length X 1.4 (3.5 CM) Width X 5.6 (14.2 CM) Height Humidity : 0 To 95% Non-Condensing Maximum Spectral Width : Less Than 55 nm Measuring Range : 840 - 880 nm Modulation Frequency : 270 kHz, 1 And 2 kHz (± 5%) Operating Temperature : -15 To 55°C Power Supply : (2) 1.5 V AA Size Battery Stability : ±0.05 dB For 1 HR Standard : ?CE - EN61010 ? EN50081-1: 1992 ? EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4
Storage Temperature : -35 To 70°C Sub Brand : fiberTOOLS Type : 577XL Series Typical Power Output : -13 DBM (+/- 0.5 DB) For 62.5/125 GI FIBER Wavelength : 850 nm Center
WEIGHT: 241 G (8.5 OZ)
CAT #: 577LX M90 UPC #: 52058726/783310000273
PRODUCTS > Fiber Optic Instruments > HANDHELD > LED Sources > LED SRCE 850NM, 62.5/125M
