GREENLEE 30474 MULTIPLE STRAND PULLING 33-02-016 GRIP 50304747/783310304746
Available*
Item # 80002546
Model # 783310304746
$217.40
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Grips
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 30474 MULTPL STR PULL 33-02-016 GRIP 50304747/783310304746 NEW
DESCRIPTION: MULTIPLE STRENGTH PULLING 33-02-016 GRIP

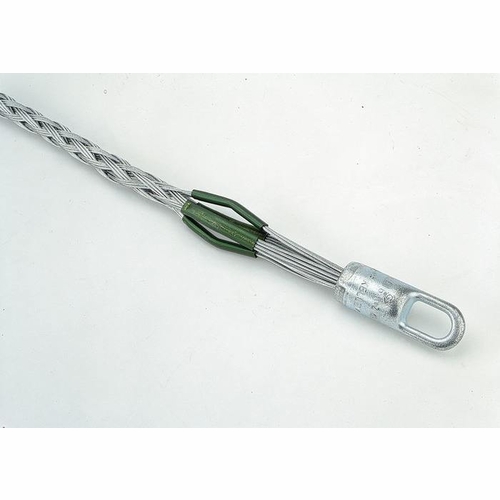

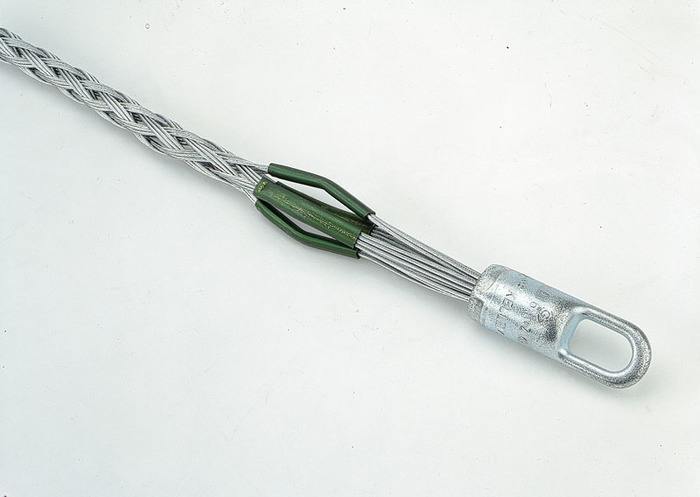

Use to pull overhead transmission lines, bare or insulated conductors and wire rope Type of pulls: heavy-duty, long distance Triple, to double, to single weave galvanized steel mesh with forged steel swivel eye Color coded for easy size identification Select the grip with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
SPECIFICATIONS:
Capacity : 1360.000 LB (6.000 KN) CABLE DIAMETER RANGE : .25in - .49in / 12.7mm - 15.5mm Color Code : Dark Green Eye Length : 5in / 127mm Mesh Length : 26in / 660.4mm Rotating Eye Diameter : 7/8in / 22.3mm
WEIGHT: 0.45 lb
CAT #: 30474
UPC #: 50304747/783310304746
PRODUCTS > Pulling > PULLING ACCESSORIES > Basket Type Grips > MULTPL STR PULL 33-02-016 GRIP
DESCRIPTION: MULTIPLE STRENGTH PULLING 33-02-016 GRIP
Use to pull overhead transmission lines, bare or insulated conductors and wire rope Type of pulls: heavy-duty, long distance Triple, to double, to single weave galvanized steel mesh with forged steel swivel eye Color coded for easy size identification Select the grip with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
SPECIFICATIONS:
Capacity : 1360.000 LB (6.000 KN) CABLE DIAMETER RANGE : .25in - .49in / 12.7mm - 15.5mm Color Code : Dark Green Eye Length : 5in / 127mm Mesh Length : 26in / 660.4mm Rotating Eye Diameter : 7/8in / 22.3mm
WEIGHT: 0.45 lb
CAT #: 30474
UPC #: 50304747/783310304746
PRODUCTS > Pulling > PULLING ACCESSORIES > Basket Type Grips > MULTPL STR PULL 33-02-016 GRIP
