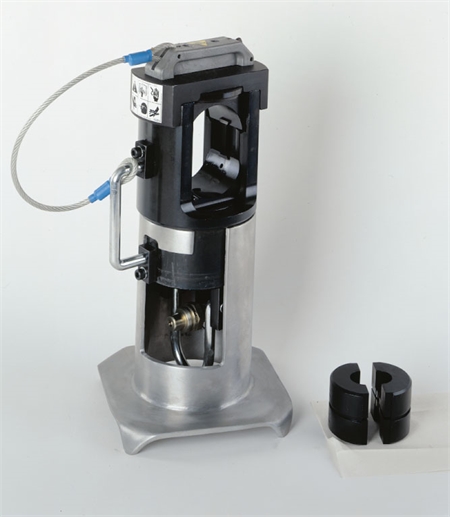

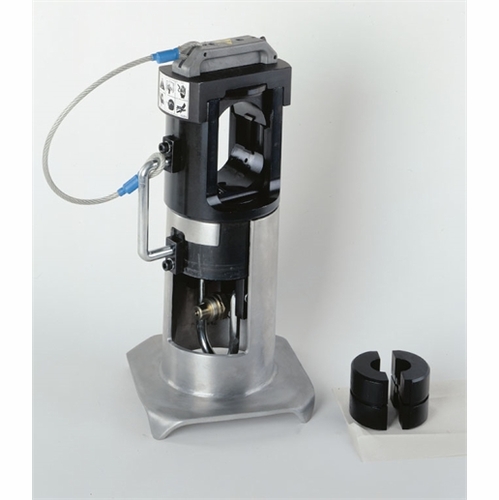

Greenlee Rk6040 Crimper, 60-Ton H2 / 50106040 / 783310106043 New
Description:
Ideal Tool For Use In Substation And Transmission Construction
Accepts Burndy L Dies And Alcoa 6000 Series Crimping Dies
After Completing A Connection, The Top Of The Head Easily Swivels 90� And Can Be Lifted From The Tool To Remove The Connector
Removing The Tool From The Stand Exposes A Lifting Eye For When The Tool Must Be Used Above Ground Level
Rk6040 Requires 10,000 Psi (700 Bar) Single-Acting Hydraulic Power Source
Dk6040 Requires 10,000 Psi (700 Bar) Double-Acting Hydraulic Power Source
Equipped With 3/8 In Screw Type Hydraulic Couplers
Includes Steel Carrying Case With Storage Space For Dies
Specifications:
Application : For Use In Substation And Transmission Construction
Capacity : 300 -2000 Kcmil Copper Stranded Code Cable, 250 - 2000 Kcmil Aluminum Stranded Code Cable, 1/0 Awg - 1000 Kcmil Copper Tension Sleeves, 1/0 Awg - 2300 Kcmil Aluminum Tension Sleeves, 1/0 Awg - 2156 (Bluebird) Kcmil Acsr Tension Sleeves, 4/0 Awg - 2500 Kcm
Crimping Force : 120000.000 Lb (530.000 Kn) At 10000 Psi
Height : 17.000 In (432.000 Mm)
Includes : Steel Carrying Case With Storage Space For Dies
Oil Volume Required : 0.75 Pt (312 Cc)
Operating Pressure : 10000 Psi (700 Bar)
Type : Single Acting
Weight : 45.000 Lb (20.000 Kg)
Width : 6.000 In (153.000 Mm)
Cat #: Rk6040 Upc #: H2 / 50106040 / 783310106043
