GREENLEE PVA0022 BLOCK UNIT, PVA H2 / 50429491 / 783310429494
Available*
Item # 79999396
Model # 783310429494
$1,529.89
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

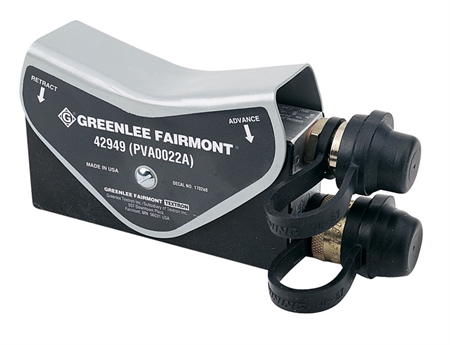

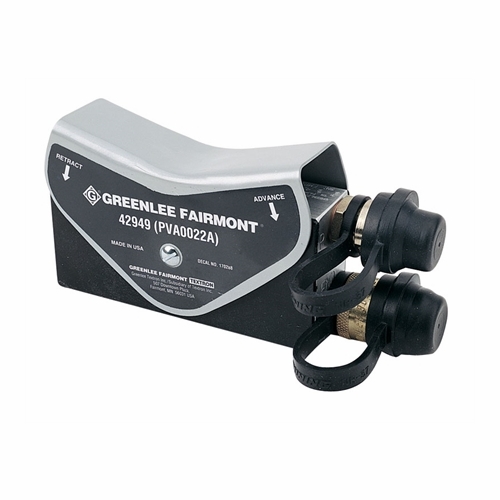

GREENLEE PVA0022 BLOCK UNIT, PVA H2 / 50429491 / 783310429494 NEW
DESCRIPTION:
May be directly connected to the tool or used remotely with hoses Compact 4-way, 3-position valve 3,000 - 4,000 psi (207 - 275 bar) return line ground dump safety valve Controlled advance and built-in hold feature Single-acting valve available to use with existing single-acting tools
SPECIFICATIONS:
Application : For Cutter And Crimping Tool Couplers : High Pressure Quick-Disconnects Included, 10000 PSI (700 BAR) Height : 3.500 IN (89.000 MM) Input Flow Range : 3 - 8 GPM (12 - 30 LPM) Length : 7.500 IN Operating Pressure : 10000 PSI (700 BAR) Return Relief Port Size Inlet : 1/4 - 18 NPTF, 1/4 - 18 NPSM Tool Return Pressure : 5000 PSI (350 BAR) Type : High Pressure Hydraulic, 4 Way, 3 Position Weight : 2.800 LB Width : 2.000 IN (44.000 MM)
CAT #: PVA0022 UPC #: H2 / 50429491 / 783310429494
PRODUCTS > Hydraulic Tools > HIGH PRESSURE TOOLS > Control Valves > BLOCK UNIT, PVA
DESCRIPTION:
May be directly connected to the tool or used remotely with hoses Compact 4-way, 3-position valve 3,000 - 4,000 psi (207 - 275 bar) return line ground dump safety valve Controlled advance and built-in hold feature Single-acting valve available to use with existing single-acting tools
SPECIFICATIONS:
Application : For Cutter And Crimping Tool Couplers : High Pressure Quick-Disconnects Included, 10000 PSI (700 BAR) Height : 3.500 IN (89.000 MM) Input Flow Range : 3 - 8 GPM (12 - 30 LPM) Length : 7.500 IN Operating Pressure : 10000 PSI (700 BAR) Return Relief Port Size Inlet : 1/4 - 18 NPTF, 1/4 - 18 NPSM Tool Return Pressure : 5000 PSI (350 BAR) Type : High Pressure Hydraulic, 4 Way, 3 Position Weight : 2.800 LB Width : 2.000 IN (44.000 MM)
CAT #: PVA0022 UPC #: H2 / 50429491 / 783310429494
PRODUCTS > Hydraulic Tools > HIGH PRESSURE TOOLS > Control Valves > BLOCK UNIT, PVA
