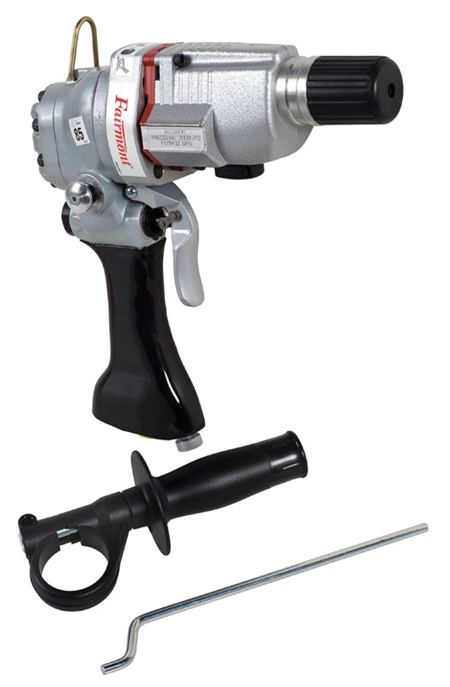

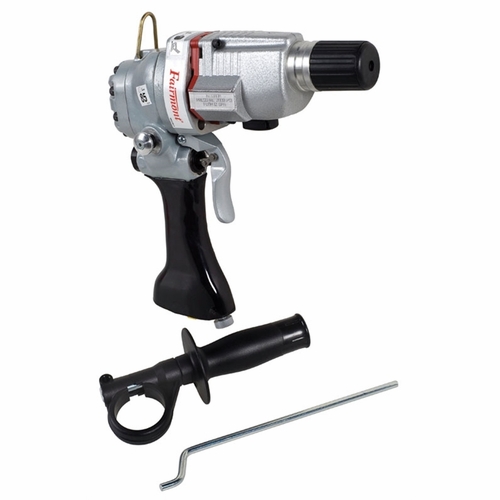

GREENLEE HID6506 DRILL,ROTARY IMPACT (HID6506) H2 / 50423092 / 783310423096
Available*
Item # 79999166
Model # 783310423096
$3,397.65
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE HID6506 DRILL,ROTARY IMPACT (HID6506) H2 / 50423092 / 783310423096 NEW
DESCRIPTION:
Adjustable flow control prevents overspeeding and allows precise control of drilling speed Supports speeds up to 5,400 bpm, generating 13% more blows per minute to help you get the job done quicker Improved design for better balance and ergonomics Hammer drill in concrete, brick, rock, and other difficult-to-drill materials. Makes 16% larger holes in concrete and 11% larger holes in wood Drill in wood or steel with auxiliary chuck Super Spool selector control for use on Open and Closed-Center hydraulic systems Selector for drill or hammer/drill modes Rugged gear motor Built-in slip clutch to guard against over-torque Depth gauge and auxiliary handle are removable for tight areas Reversible
SPECIFICATIONS: Capacity : Steel 1/2 IN (134.000 MM) Hole, Wood 1-1/16 IN (27.000 MM) Hole, Concrete 3/4 IN (19.000 MM) Hole, Core Bits 3.000 IN (76.000 MM) Chuck : SDS Plus Bit Shanks Height : 9.750 IN (248.000 MM) Hydraulic Flow Range : 5 - 10 GPM (19 - 38 LPM) Length : 12.000 IN (305.000 MM) Operating Pressure : 1000 - 2000 PSI (69 - 140 BAR) Pressure Port : 3/4 - 16 SAE O-Ring Thread Return Port : 3/4 - 16 SAE O-Ring Thread Speed : 775 - 1100 RPM At 6.5 GPM (25LPM) System : Super Spool Selector Control System Type : Rotary Impact Weight : 8.500 LB (3.900 KG) Width : 3.500 IN (89.000 MM)
CAT #: HID6506 UPC #: H2 / 50423092 / 783310423096
