Product Description

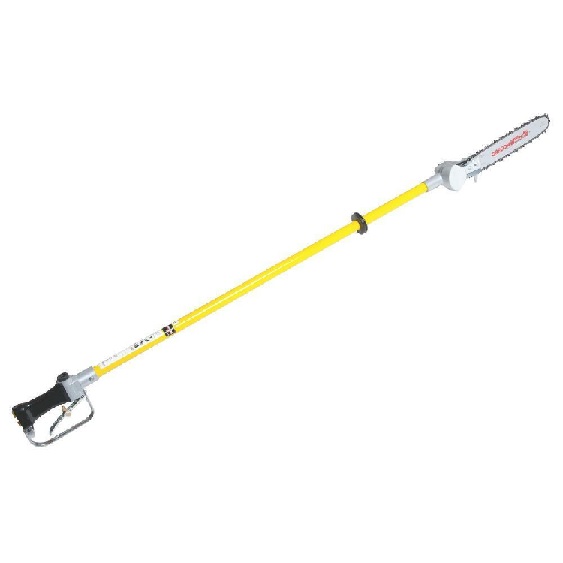

Greenlee 43177 Chainsaw, Long Reach (88") H2 / 50431773/783310431770 New
Greenlee 43177
Chainsaw, Long Reach (88") H2 50431773/783310431770 New
Cuts Hard-To-Reach Branches From Aerial Basket Or From The Ground
Super Spool Selector Control For Use On Open And Closed-Center Hydraulic Systems
Available In Three Lengths
Insulated Fiberglass Extension Tubes, Tested To Meet Osha Regulation 1910.269
Safety Features Include: Two-Step Trigger, Trigger Guard, And Fully Covered Sprocket Guard
Anti-Kickback Chain And Automatic Chain Oiler
Rugged High Torque Gear Motor
Unfilled And Foam-Filled Extension Tube Versions Offered
Specifications:
Accessory 54923 Htma Male Coupler, 54924 Htma Female Coupler
Application For Use On Open And Closed-Center Hydraulic Systems
Bar Gauge 0.058 In (1.470 Mm)
Chain Size 0.325 In (8.300 Mm) Pitch
Cutting Capacity 13.000 In (330.000 Mm)
Extension Type Fiberglass - Tested To 100 Kva For 5 Mint
Flow Range 5 - 8 Gpm (19 - 30 Lpm)
Length 88.500 In (2.200 M)
Operating Pressure 1000 - 2000 Psi (69 - 140 Bar)
Pressure Port 9/16-18 Sae O-Ring
Return Port 3/4-16 Sae O-Ring
Standard Meet Osha Regulation 1910.269
System Super Spool Selector Control For Use On Open And Closed-Center Hydraulic Systems
Type Long Reach
Weight 9-3/4 Lb (4.400 Kg)
Width 4.000 In (102.000 Mm)Read More
