GREENLEE 01078 KIT SEAL 50010786/783310010784
Available*
Item # 79997212
Model # 783310010784
$125.70
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Cutters
Tools
Hand Tools
Cable Cutters
Greenlee Textron
Cable Cutters - Parts
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 01078 KIT SEAL 50010786/783310010784 NEW
GREENLEE 01078 KIT SEAL 50010786/783310010784

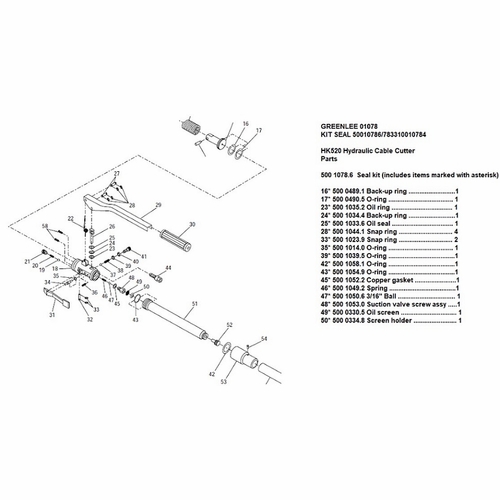

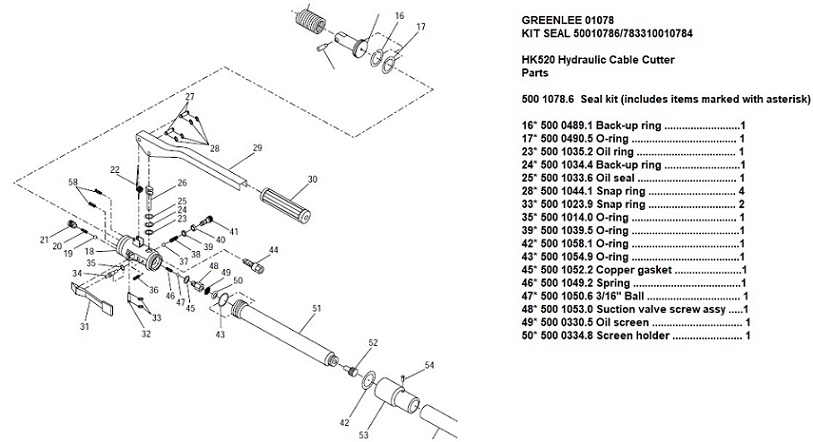

HK520 Hydraulic Cable Cutter Parts
500 1078.6 Seal kit (includes items marked with asterisk)
16* 500 0489.1 Back-up ring ..........................1 17* 500 0490.5 O-ring .................................... 1 23* 500 1035.2 Oil ring .................................. 1 24* 500 1034.4 Back-up ring ..........................1 25* 500 1033.6 Oil seal .................................. 1 28* 500 1044.1 Snap ring .............................. 4 33* 500 1023.9 Snap ring .............................. 2 35* 500 1014.0 O-ring .................................... 1 39* 500 1039.5 O-ring .....................................1 42* 500 1058.1 O-ring .....................................1 43* 500 1054.9 O-ring .....................................1 45* 500 1052.2 Copper gasket ........................1 46* 500 1049.2 Spring .....................................1 47* 500 1050.6 3/16" Ball .............................; 1 48* 500 1053.0 Suction valve screw assy .......1 49* 500 0330.5 Oil screen .............................. 1 50* 500 0334.8 Screen holder ........................ 1
GREENLEE 01078 KIT SEAL 50010786/783310010784
HK520 Hydraulic Cable Cutter Parts
500 1078.6 Seal kit (includes items marked with asterisk)
16* 500 0489.1 Back-up ring ..........................1 17* 500 0490.5 O-ring .................................... 1 23* 500 1035.2 Oil ring .................................. 1 24* 500 1034.4 Back-up ring ..........................1 25* 500 1033.6 Oil seal .................................. 1 28* 500 1044.1 Snap ring .............................. 4 33* 500 1023.9 Snap ring .............................. 2 35* 500 1014.0 O-ring .................................... 1 39* 500 1039.5 O-ring .....................................1 42* 500 1058.1 O-ring .....................................1 43* 500 1054.9 O-ring .....................................1 45* 500 1052.2 Copper gasket ........................1 46* 500 1049.2 Spring .....................................1 47* 500 1050.6 3/16" Ball .............................; 1 48* 500 1053.0 Suction valve screw assy .......1 49* 500 0330.5 Oil screen .............................. 1 50* 500 0334.8 Screen holder ........................ 1
