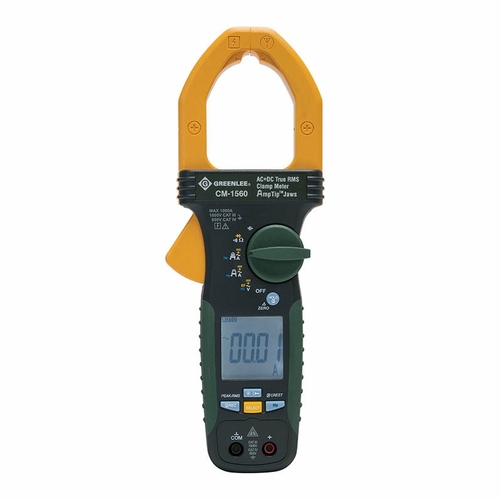

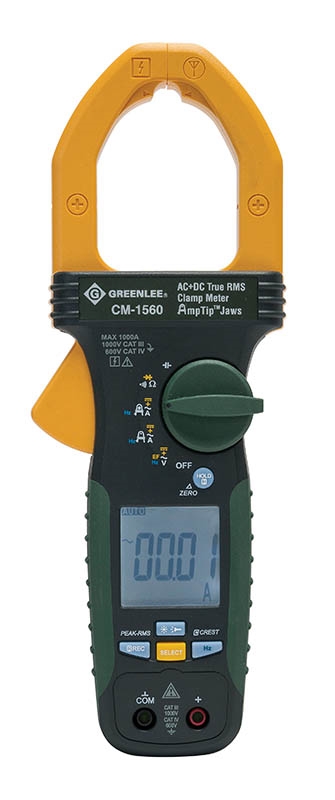

GREENLEE CM-1560 CLAMPMETER AC/DC (CM-1560)(POP) 783310021889 /52066372
Available*
Item # 79992382
Model # 783310021889
$358.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Multimeter
Test Equipment
Multimeters-VOM-Brownie
Digital
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE CM-1560 CLAMPMETER, AC/DC (CM-1560)(POP) 783310021889 /52066372 NEW
DESCRIPTION:
Measures AC+DC current AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives Also measures DC voltage, resistance, capacitance and frequency Tests continuity and diodes Flashlight inside clamp jaw for easier work in dark locations Backlight & relative mode for added versatility Peak-RMS measures motor inrush current AmpTip? increases accuracy on small wires and low current Two voltage detection modes - non-contact or using a single test lead Data hold Recording of Maximum, Minimum, and Average readings Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds Lifetime warranty
SPECIFICATIONS:
Amperage Measurement : 60, 600, 1000 Amps AC+DC Display : LCD, 6000 Count Frequency Rating : Voltage: 50/60 Hz. Current: 40 to 400 Hz Includes : (2) 1.5V AA batteries, test leads, carrying case Jaw Opening : 2.0" (51 mm) Measurement Category : CAT III 1000V, CAT IV 600V Replacement Part : TSG-3 test leads, TC-30 carrying case Resistance Measurement : 600, 6k, 60k Ohms Standard : CAT IV, C/US UL Listed, CE True Power : AC+DC True RMS Voltage Measurement : 600, 1000 Volts AC/DC
Cat No: CM-1560 UPC No: 783310021889 /52066372 Products > Electric Test Instruments > CLAMP-ON METERS > Industrial Clamp Meters > CLAMPMETER, AC/DC (CM-1560) (POP)
DESCRIPTION:
Measures AC+DC current AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives Also measures DC voltage, resistance, capacitance and frequency Tests continuity and diodes Flashlight inside clamp jaw for easier work in dark locations Backlight & relative mode for added versatility Peak-RMS measures motor inrush current AmpTip? increases accuracy on small wires and low current Two voltage detection modes - non-contact or using a single test lead Data hold Recording of Maximum, Minimum, and Average readings Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds Lifetime warranty
SPECIFICATIONS:
Amperage Measurement : 60, 600, 1000 Amps AC+DC Display : LCD, 6000 Count Frequency Rating : Voltage: 50/60 Hz. Current: 40 to 400 Hz Includes : (2) 1.5V AA batteries, test leads, carrying case Jaw Opening : 2.0" (51 mm) Measurement Category : CAT III 1000V, CAT IV 600V Replacement Part : TSG-3 test leads, TC-30 carrying case Resistance Measurement : 600, 6k, 60k Ohms Standard : CAT IV, C/US UL Listed, CE True Power : AC+DC True RMS Voltage Measurement : 600, 1000 Volts AC/DC
Cat No: CM-1560 UPC No: 783310021889 /52066372 Products > Electric Test Instruments > CLAMP-ON METERS > Industrial Clamp Meters > CLAMPMETER, AC/DC (CM-1560) (POP)
