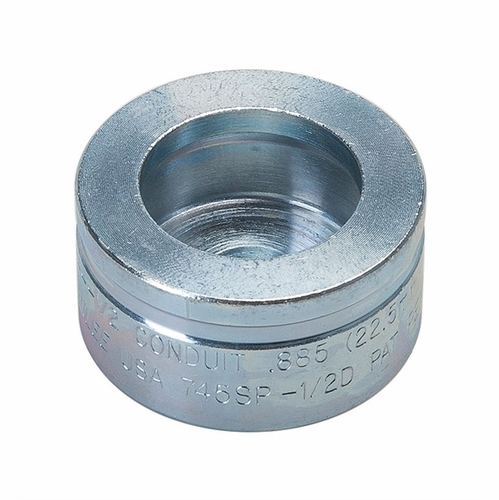

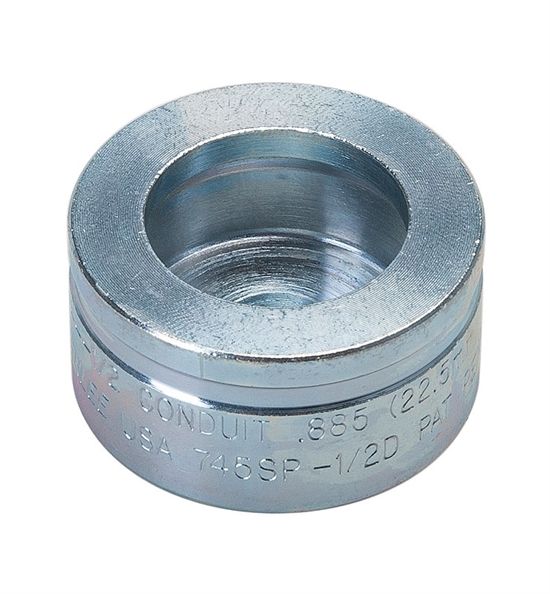

GREENLEE 745SP-1/2D DIE COND SPEED SS 1/2 INCH (22.5MM) 783310016625 /52066006
Available*
Item # 79992288
Model # 783310016625
$46.17
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Knockouts
Tools
Hand Tools
Knock Out Sets
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 745SP-1/2D DIE, COND, SPEED, SS 1/2" (22.5MM) 783310016625 /52066006 NEW
DESCRIPTION:
SPEED PUNCH saves time and money with every hole.
Up to 3X's faster setup and disassembly. No-Thread punch design eliminates cross-threading.
Available for
Stainless Steel - 1/2" to 2" conduit size
Mild Steel - 1/2" to 4" conduit size
Metric ISO-16 to ISO-63
22mm & 30mm for Oil tight push buttons
SPECIFICATIONS
Applicatin : For punching conduit size holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.
Capacity Mild Steel : Max: 10 gauge (3.0 mm).
Capacity Stainless Steel : Max: 12 gauge (2.5 mm). Diameter : Actual hole size: 0.885" (22.5 mm) Draw Stud : Std. Draw Stud: 7212SP24 (3/8" X 3.82"). Draw Studs : Alt. Draw Stud (Long): 7212SP22 (3/8" x 4.69") - For use with 746 Hydraulic Ram. Driver : Use with GREENLEE Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered driver up to max. 12 ga. stainless steel) Material : Carbon-Alloy Steel, Zinc Plated Minimum Pilot Hole : 1/2" (12.7 mm) Operation : Must be used with other SPEED PUNCH? System components. Sub Brand : SPEED PUNCH Type : Knockout Punches
Weight : 0.25 lbs. (0.11 kg)
CAT#: 745SP-1/2D
Part #/UPC: 783310016625/52066006
