Product Description

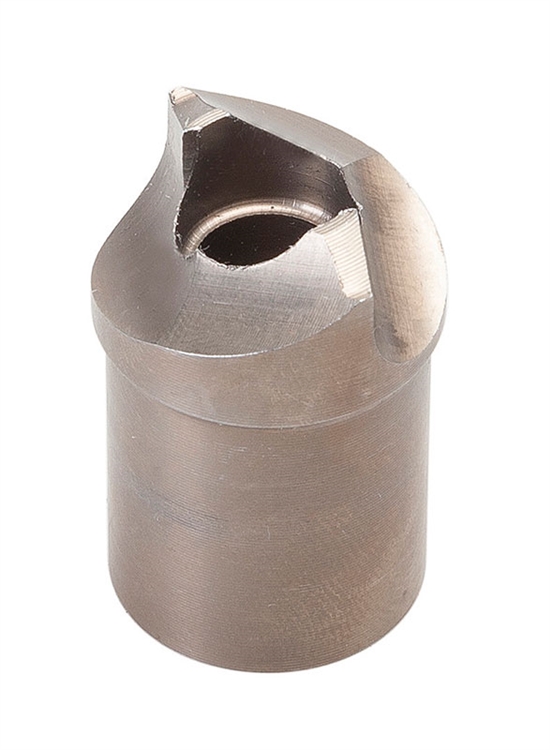

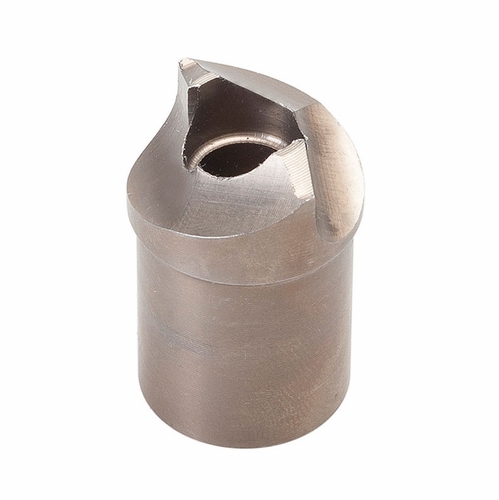

Greenlee 745Sp-1/2P Punch-Rd, Cond, Speed, Ss 1/2" (22.5Mm) 783310016618 /52066005 New
Description:
Speed Punch? Saves Time And Money With Every Hole.
Up To 3X'S Faster Setup And Disassembly.
No-Thread Punch Design Eliminates Cross-Threading.
Available For
Stainless Steel - 1/2" To 2" Conduit Size
Mild Steel - 1/2" To 4" Conduit Size
Metric Iso-16 To Iso-63
22Mm & 30Mm For Oiltight Push Buttons
Specifications:
Application : For Punching Conduit Size Holes In Stainless Steel, Mild Steel, Aluminum, Fiberglass, And Plastic.
Capacity Mild Steel : Max: 10 Gauge (3.0 Mm).
Capacity Stainless Steel : Max: 12 Gauge (2.5 Mm).
Diameter : Actual Hole Size: 0.885" (22.5 Mm)
Draw Stud : Std. Draw Stud: 7212Sp24 (3/8" X 3.82").
Draw Studs : Alt. Draw Stud (Long): 7212Sp22 (3/8" X 4.69") - For Use With 746 Hydraulic Ram.
Driver : Use With Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (Or Ls50L - Battery-Powered Driver Up To Max. 12 Ga. Stainless Steel)
Material : Tool Steel
Minimum Pilot Hole : 1/2" (12.7 Mm)
Operation : Must Be Used With Other Speed Punch? System Components.
Sub Brand : Speed Punch?
Type : Knockout Punches
Weight : 0.25 Lbs. (0.11 Kg)
Cat #: 745Sp-1/2P Part #/Upc: 783310016618
