GREENLEE UCT-8/K01 UNDRGRND CABLE TEST, OLPS, ASP, CASE 783310081388/52083999

GREENLEE UCT-8/K01 UNDRGRND CABLE TEST, OLPS, ASP, CASE 783310081388/52083999

GREENLEE UCT-8/K01 UNDRGRND CABLE TEST, OLPS, ASP, CASE 783310081388/52083999

Compact and lightweight solution for underground cable testing DC Hi-Pot test of de-energized, shielded underground primary cable No external power required - self-contained 8kVDC voltage source Can be used up to a distance of 1500 ft (457m) Clear and simple test results - analog bar graph and indication of good or faulted cable Safety feature - measures AC voltage before converting to a DC voltage tester Lightweight, single hot stick operation for testing cable

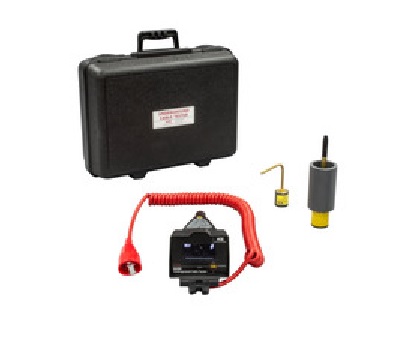

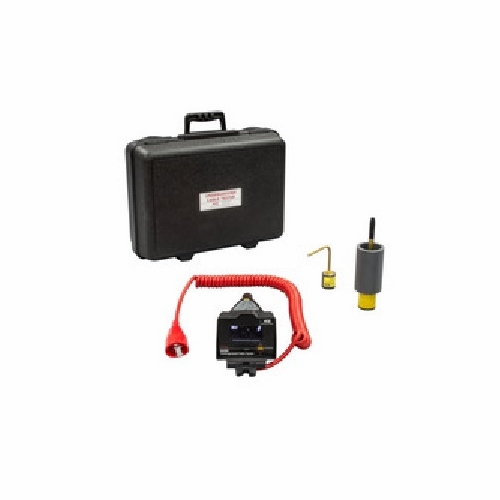

Specifications Sub Brand HDE Type Underground Cable Tester Model UCT-8 Voltage Rating 100V-25kVAC line-to-ground Accuracy +/- 5% of reading (AC Voltage) Display LED display Operating Temperature +20°F to +120°F (-7°C to +49°C) Dimensions 14"L x 4.6"W x 4.1" H (36 cm x 12 cm x 10 cm) Frequency Rating 50/60Hz Included UCT-8 Underground Cable Fault Tester, (1) 025-OLPS-5 Overhead Brass Hook Probe, (1) ASP-15/25 UG Bushing Probe, CS-UCT Plastic Carrying Case *Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models
