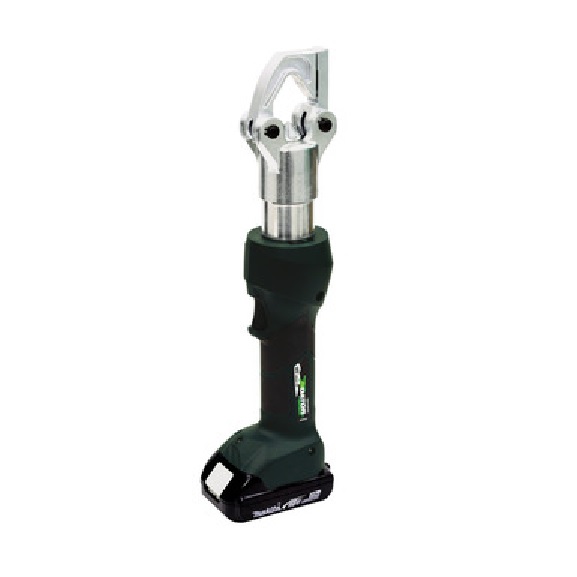

GREENLEE EK6IDLX230 CRIMPER INDENT, 6T LI, STD, 230V AC 783310610731/52078706
Available*
Item # 79990996
Model # 783310610731
$3,313.82
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK6IDLX230 CRIMPER INDENT, 6T LI, STD, 230V AC 783310610731/52078706
GREENLEE EK6IDLX230 CRIMPER INDENT, 6T LI, STD, 230V AC 783310610731/52078706
The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section.
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al Fine Strand, 8 AWG - 350 Kcmil Cu DLO, 8 AWG - 373.3 Kcmil Cu Overall Length 15.75 IN (400mm) Crimping Force Variable 3-6 Ton (30-60 kN) Crimping Capacity Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al Fine Strand, 350 Kcmil (MCM) Copper DLO, 373.7 Kcmil (MCM) Copper Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
GREENLEE EK6IDLX230 CRIMPER INDENT, 6T LI, STD, 230V AC 783310610731/52078706
The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section.
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al Fine Strand, 8 AWG - 350 Kcmil Cu DLO, 8 AWG - 373.3 Kcmil Cu Overall Length 15.75 IN (400mm) Crimping Force Variable 3-6 Ton (30-60 kN) Crimping Capacity Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al Fine Strand, 350 Kcmil (MCM) Copper DLO, 373.7 Kcmil (MCM) Copper Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
