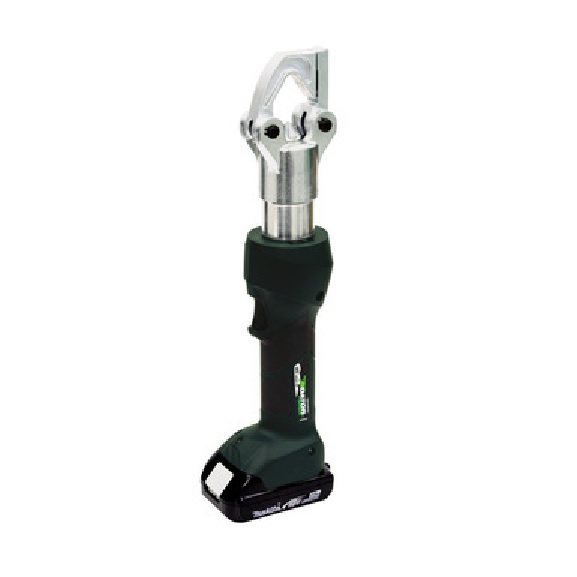

GREENLEE EK6IDLX120 CRIMPER INDENT, 6T LI, STD, 120V AC 783310611004/52078715
Available*
Item # 79990992
Model # 783310611004
$3,298.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK6IDLX120 CRIMPER INDENT, 6T LI, STD, 120V AC 783310611004/52078715
GREENLEE EK6IDLX120 CRIMPER INDENT, 6T LI, STD, 120V AC 783310611004/52078715
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Dual stage telescopic cylinder The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations Secondly it crimps smaller cross sections up to 1/0 AWG The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM. Compact design, low weight and heavy duty performance The EK6ID offers all well known advantages of the Greenlee Gator line of products Pressure sensor for the electronic control of crimping operation Automatic retraction, ARS (Automatic Retraction Stop) Single trigger operation Extreme Accountability: Risk of wrong selection of dies is eliminated Clear marking of crimped connectors enables subsequent control Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools Gator Eye Compatibility
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al Fine Strand, 8 AWG - 350 Kcmil Cu DLO, 8 AWG - 373.3 Kcmil Cu Overall Length 15.75 IN (400mm) Crimping Force Variable 3-6 Ton (30-60 kN) Crimping Capacity Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al Fine Strand, 350 Kcmil (MCM) Copper DLO, 373.7 Kcmil (MCM) Copper Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
GREENLEE EK6IDLX120 CRIMPER INDENT, 6T LI, STD, 120V AC 783310611004/52078715
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Dual stage telescopic cylinder The EK6IDL consists of two individual pistons (large exterior and a small interior one). The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations Secondly it crimps smaller cross sections up to 1/0 AWG The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM. Compact design, low weight and heavy duty performance The EK6ID offers all well known advantages of the Greenlee Gator line of products Pressure sensor for the electronic control of crimping operation Automatic retraction, ARS (Automatic Retraction Stop) Single trigger operation Extreme Accountability: Risk of wrong selection of dies is eliminated Clear marking of crimped connectors enables subsequent control Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools Gator Eye Compatibility
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al Fine Strand, 8 AWG - 350 Kcmil Cu DLO, 8 AWG - 373.3 Kcmil Cu Overall Length 15.75 IN (400mm) Crimping Force Variable 3-6 Ton (30-60 kN) Crimping Capacity Standard Strand, 500 kcmil (MCM) Copper, 350 kcmil (MCM) Al Fine Strand, 350 Kcmil (MCM) Copper DLO, 373.7 Kcmil (MCM) Copper Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
