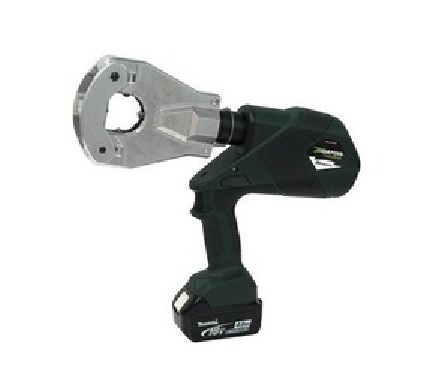

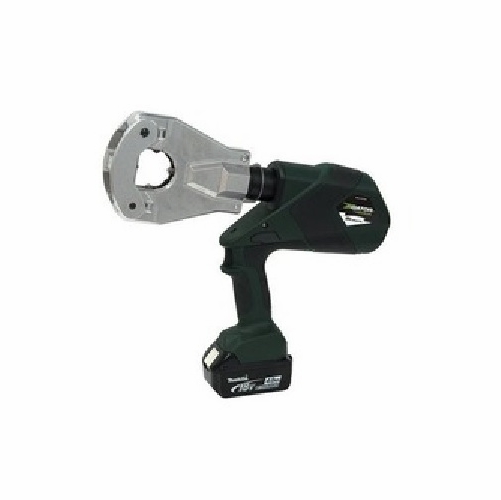

GREENLEE EK6FTLX11 CRIMPER QUAD FLIP, 6T LI, STD, 120V 783310611196/52078736
Available*
Item # 79990968
Model # 783310611196
$6,542.17
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK6FTLX11 CRIMPER QUAD FLIP, 6T LI, STD, 120V 783310611196/52078736
GREENLEE EK6FTLX11 CRIMPER QUAD FLIP, 6T LI, STD, 120V 783310611196/52078736
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Over molded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indenters to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indentors to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size 6 AWG - 750 Kcmil Cu & Al Overall Length 14.875 IN (378mm) Crimping Force 12,400 lbs. (55 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
GREENLEE EK6FTLX11 CRIMPER QUAD FLIP, 6T LI, STD, 120V 783310611196/52078736
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Over molded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indenters to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Utilizes four indentors to make the crimp Flip-top style uses a pull pin to open head for easy removal from the connector U.S. Patents #6,206,663 and #6,065,326 Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Dieless style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size 6 AWG - 750 Kcmil Cu & Al Overall Length 14.875 IN (378mm) Crimping Force 12,400 lbs. (55 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
