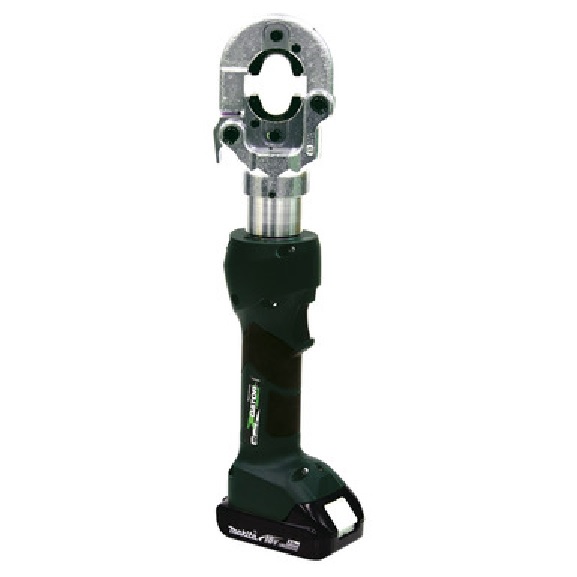

GREENLEE EK622LX230 CRIMPER, 6T LI, STD, 230V AC 783310609551/52078618
Available*
Item # 79990928
Model # 783310609551
$3,510.89
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK622LX230 CRIMPER, 6T LI, STD, 230V AC 783310609551/52078618
GREENLEE EK622LX230 CRIMPER, 6T LI, STD, 230V AC 783310609551/52078618
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In-Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Accepts Greenlee KC22 and KA22 series crimping dies Includes 04292 die adapters which can be used with all industry "W" style crimping dies and Greenlee KD6 style dies Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Die style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 600 kcmil Cu Wire Size 8 AWG - 350 kcmil Al Overall Length 15.75 IN (438mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity 600 kcmil (MCM) Copper Crimping Capacity 350 kcmil (MCM) Al Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
GREENLEE EK622LX230 CRIMPER, 6T LI, STD, 230V AC 783310609551/52078618
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In-Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Accepts Greenlee KC22 and KA22 series crimping dies Includes 04292 die adapters which can be used with all industry "W" style crimping dies and Greenlee KD6 style dies Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Die style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 600 kcmil Cu Wire Size 8 AWG - 350 kcmil Al Overall Length 15.75 IN (438mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity 600 kcmil (MCM) Copper Crimping Capacity 350 kcmil (MCM) Al Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
