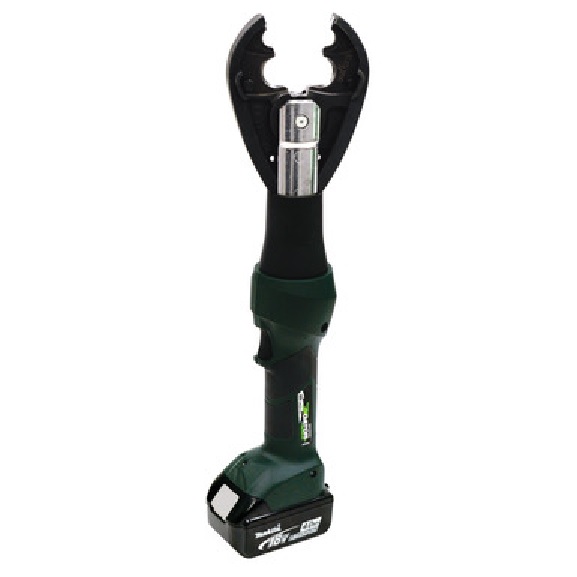

GREENLEE EK425LXDO12 CRIMPER, 6T LI, STD, CJD3O, 12V 783310609063/52078569
Available*
Item # 79990902
Model # 783310609063
$2,770.96
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK425LXDO12 CRIMPER, 6T LI, STD, CJD3O, 12V 783310609063/52078569
GREENLEE EK425LXDO12 CRIMPER, 6T LI, STD, CJD3O, 12V 783310609063/52078569
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector The crimping jaws open wide to fit easily over connectors In-line tool style is lightweight and very easy to control To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws It is then ready to make the next crimp And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
Specifications Sub Brand Gator Type Die style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Overall Length 18.5 IN (470mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Connector Type Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices Handle Type In-Line Style with over molded rubber grip
GREENLEE EK425LXDO12 CRIMPER, 6T LI, STD, CJD3O, 12V 783310609063/52078569
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector The crimping jaws open wide to fit easily over connectors In-line tool style is lightweight and very easy to control To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws It is then ready to make the next crimp And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
Specifications Sub Brand Gator Type Die style crimper Application 6 Ton Crimping Standard C/US UL Listed Wire Size Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Overall Length 18.5 IN (470mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Connector Type Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices Handle Type In-Line Style with over molded rubber grip
