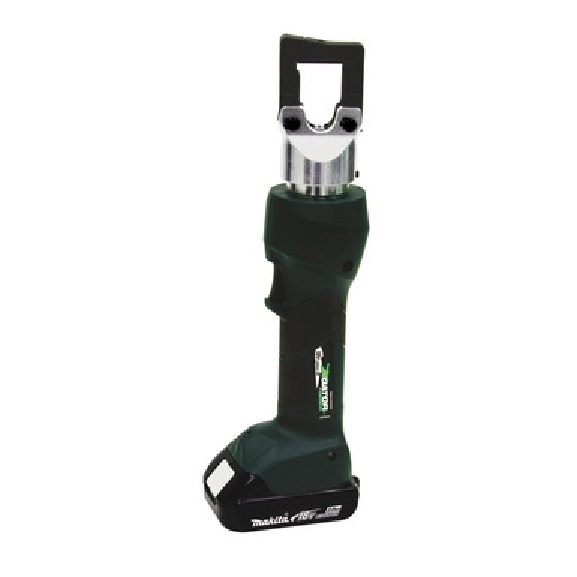

GREENLEE EK410LX22 CRIMPER, 4T LI, STD, 230V 783310609292/52078592
Available*
Item # 79990854
Model # 783310609292
$2,387.53
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK410LX22 CRIMPER, 4T LI, STD, 230V 783310609292/52078592
GREENLEE EK410LX22 CRIMPER, 4T LI, STD, 230V 783310609292/52078592
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator with a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In-Line tool style is lightweight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Used with Greenlee KC4, KA4 and KD4 crimping dies Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Die style crimper Application 4 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 300 kcmil Cu Wire Size 8 AWG - 2/0 kcmil Al Overall Length 13.25 IN (337mm) Crimping Force 7,900 lbs. (35 kN) Crimping Capacity 300 kcmil (MCM) Copper Crimping Capacity 2/0 AWG Al Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
GREENLEE EK410LX22 CRIMPER, 4T LI, STD, 230V 783310609292/52078592
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator with a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In-Line tool style is lightweight and very easy to control One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Used with Greenlee KC4, KA4 and KD4 crimping dies Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications Sub Brand Gator Type Die style crimper Application 4 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 300 kcmil Cu Wire Size 8 AWG - 2/0 kcmil Al Overall Length 13.25 IN (337mm) Crimping Force 7,900 lbs. (35 kN) Crimping Capacity 300 kcmil (MCM) Copper Crimping Capacity 2/0 AWG Al Connector Type Color-coded lugs and splices Handle Type In-Line Style with over molded rubber grip
