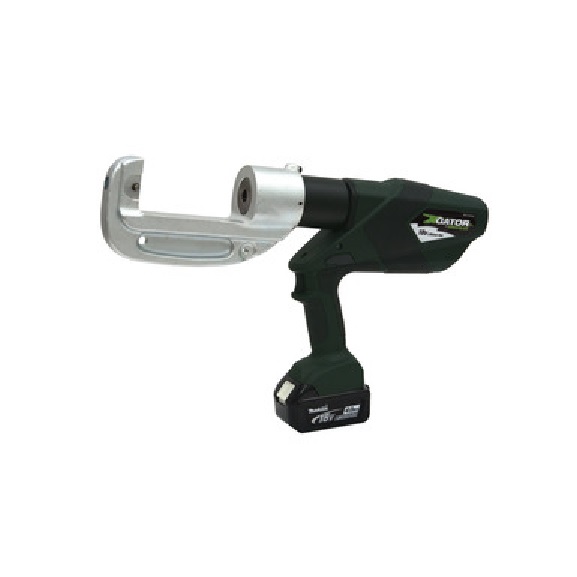

GREENLEE EK1550LX11 CRIMPER, 15T LI, STD, 120V 783310610700/52078703
Available*
Item # 79990830
Model # 783310610700
$6,960.79
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK1550LX11 CRIMPER, 15T LI, STD, 120V 783310610700/52078703
GREENLEE EK1550LX11 CRIMPER, 15T LI, STD, 120V 783310610700/52078703
This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Interchangeable adapters permit the use of a wide variety of crimping dies Accepts Kearney PH4/P14 dies without adapter Assist handle is included to provide linemen better balance for the tool
Specifications Sub Brand Gator Type Die style crimper Application 15 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 1000 Kcmil Cu & Al LWH 23x14x7 inches Overall Length 19.625 IN (498mm) Crimping Force 30,000 lbs. (134 kN) Crimping Capacity 1000 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
GREENLEE EK1550LX11 CRIMPER, 15T LI, STD, 120V 783310610700/52078703
This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Interchangeable adapters permit the use of a wide variety of crimping dies Accepts Kearney PH4/P14 dies without adapter Assist handle is included to provide linemen better balance for the tool
Specifications Sub Brand Gator Type Die style crimper Application 15 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 1000 Kcmil Cu & Al LWH 23x14x7 inches Overall Length 19.625 IN (498mm) Crimping Force 30,000 lbs. (134 kN) Crimping Capacity 1000 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
