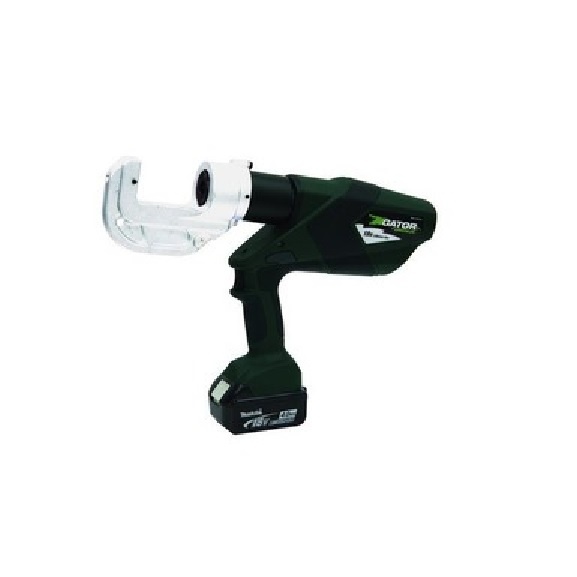

GREENLEE EK1240KLX230 CRIMPER KEARNEY, 12T LI, STD, 230V AC 783310610502/52078683
Available*
Item # 79990790
Model # 783310610502
$5,879.90
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE EK1240KLX230 CRIMPER KEARNEY, 12T LI, STD, 230V AC 783310610502/52078683
GREENLEE EK1240KLX230 CRIMPER KEARNEY, 12T LI, STD, 230V AC 783310610502/52078683
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red. U.S. Patents #6,206,663 and #6,065,326
Specifications Sub Brand Gator Type Die style crimper Application 12 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 750 Kcmil Cu & Al Opening Size 1.65 IN (42 mm) Overall Length 16.25 IN (413 mm) Crimping Force 24,000 lbs. (106 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
GREENLEE EK1240KLX230 CRIMPER KEARNEY, 12T LI, STD, 230V AC 783310610502/52078683
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry "U" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red. U.S. Patents #6,206,663 and #6,065,326
Specifications Sub Brand Gator Type Die style crimper Application 12 Ton Crimping Standard C/US UL Listed Wire Size 8 AWG - 750 Kcmil Cu & Al Opening Size 1.65 IN (42 mm) Overall Length 16.25 IN (413 mm) Crimping Force 24,000 lbs. (106 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
