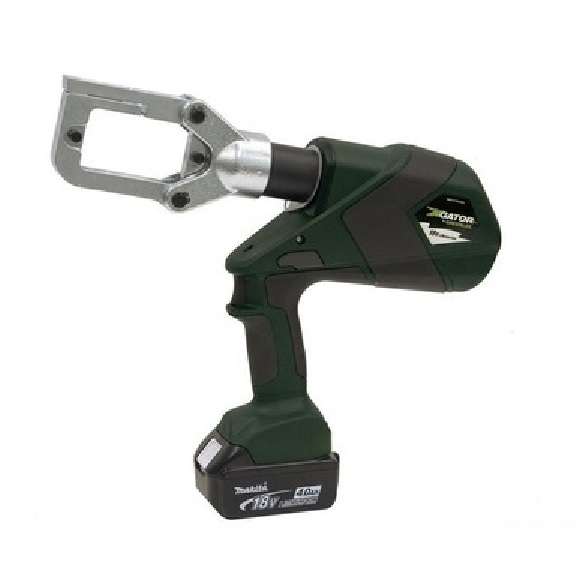

GREENLEE E6CCXLX22 MULTI TOOL, 6 T LI, STD, 230V 783310611608/52078774
Available*
Item # 79990746
Model # 783310611608
$4,809.93
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE E6CCXLX22 MULTI TOOL, 6 T LI, STD, 230V 783310611608/52078774
GREENLEE E6CCXLX22 MULTI TOOL, 6 T LI, STD, 230V 783310611608/52078774
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Use optional CCX blades and adapters U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2" diameter.
Specifications Sub Brand Gator Type Die style crimper/cutter Application 6 Ton Crimping/Cutting Standard C/US UL Listed Wire Size 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al Overall Length 14.75 IN (375mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
GREENLEE E6CCXLX22 MULTI TOOL, 6 T LI, STD, 230V 783310611608/52078774
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70% More Cycles Per Charge And Faster Cycle Times Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart Chargers control the charging current, charging voltage and battery temperature to maximize battery life Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger Use optional CCX blades and adapters U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC22 and KA22 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy®, Kearney®, Blackburn®, Panduit® and Thomas & Betts® dies used for 6-ton tools. They can drive knockout punches up through 2" diameter.
Specifications Sub Brand Gator Type Die style crimper/cutter Application 6 Ton Crimping/Cutting Standard C/US UL Listed Wire Size 8 AWG - 600 kcmil Cu, 8 AWG - 350 kcmil Al Overall Length 14.75 IN (375mm) Crimping Force 12,000 lbs. (53 kN) Crimping Capacity 600 kcmil (MCM) Copper, 350 kcmil (MCM) Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
