GREENLEE E12CCXLX120 MULTI TOOL, 12T LI, STD, 120V AC 783310611493/52078763
Available*
Item # 79990732
Model # 783310611493
$7,045.38
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

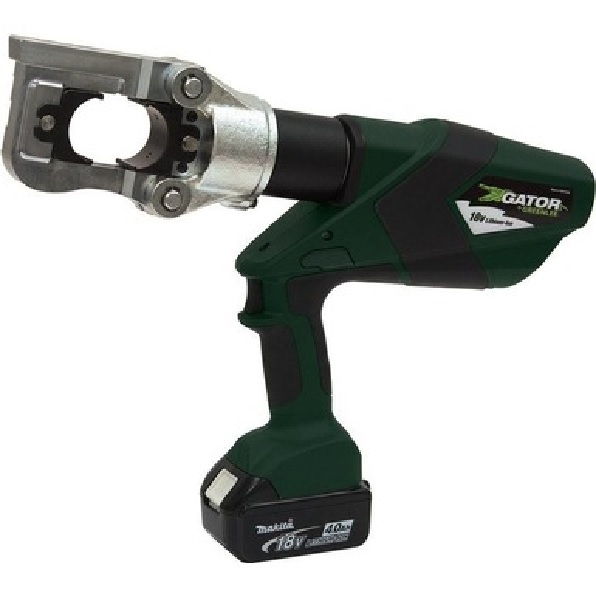

GREENLEE E12CCXLX120 MULTI TOOL, 12T LI, STD, 120V AC 783310611493/52078763
GREENLEE E12CCXLX120 MULTI TOOL, 12T LI, STD, 120V AC 783310611493/52078763
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger use optional CCX Blades and adapters. U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. T he tools also accept all industry U type dies These tools drive knockout punches through 5-5/8" diameter.
Specifications Sub Brand Gator Type Die style crimper/cutter Application 12 Ton Crimping/Cutting Standard C/US UL Listed Wire Size 8 AWG - 750 Kcmil Cu & Al Overall Length 16.5 IN (420mm) Crimping Force 24,000 lbs. (106 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
GREENLEE E12CCXLX120 MULTI TOOL, 12T LI, STD, 120V AC 783310611493/52078763
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps LED light provides the operator with the battery charge and tool maintenance status Two-stage hydraulic system provides fast advance and power speeds, saving time Forward handle position improves tool balance One trigger controls all tool functions Crimping head rotates 350° Tools automatically retract when the crimping cycle is complete Overmolded tacky grip areas make gripping the tool easier and more comfortable LED work light illuminates dark work areas Greenlee battery-powered crimping tools now use bio-degradable oil Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger use optional CCX Blades and adapters. U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. T he tools also accept all industry U type dies These tools drive knockout punches through 5-5/8" diameter.
Specifications Sub Brand Gator Type Die style crimper/cutter Application 12 Ton Crimping/Cutting Standard C/US UL Listed Wire Size 8 AWG - 750 Kcmil Cu & Al Overall Length 16.5 IN (420mm) Crimping Force 24,000 lbs. (106 kN) Crimping Capacity 750 Kcmil (MCM) Cu & Al Connector Type Color-coded lugs and splices Handle Type Pistol Style with over molded rubber grip
